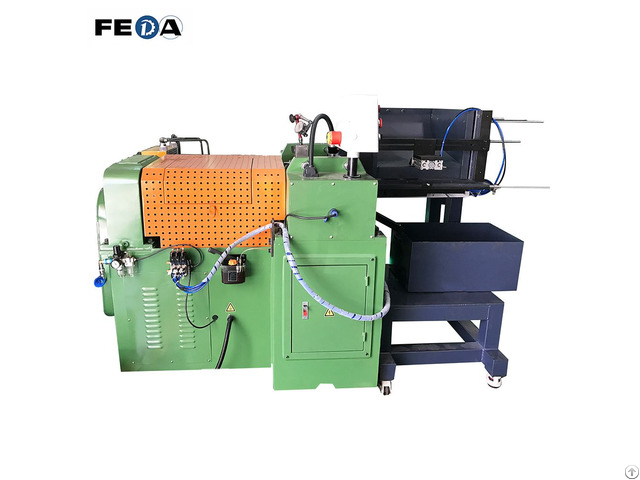

Fd 25e Steel Pipe Threading Machine - China

Specification Working diameter 5-40mm Thread pitch 0.7-3.5mm Thread length In feed or Thru feed Spindle speed 36/47/60/78rpm Outside diameter of rolling die 135-170mm Inside diameter of rolling die 54mm Thickness of rolling die 110mm Min.

center distance between die spindles 120mm Max.

center distance between die spindles 240mm Output(pcs/min) 5-35 pcs/min Machine motor 5.5HP (4KW) Hydraulic motor 3HP (2.2KW) Max.

Rolling pressure 15T Supply voltage 380V 3P 50Hz Weight(reference) 1700(KG) Package Dimension(L*W*H) 1600*1480*1240 mm Dimension(L*W*H) 1500*1380*1140 mm

Q1 - Are you factory or trading company ?

A1 - We are factory of manufacturing thread rolling machine and dies by ourselves.

Welcome to visit our factory, if possible.

Q2 - What is the delivery time ?

A2 - Usually 15-25 working days for machine, and 10-15 working days for dies.

Q3 - What is the warranty time for machine?

A3 - Usually 12 months from B/L date.

Q4 - What is the payment term?

A4 - T/T, Western Union, Money Gram, Alipay, PayPal.

50% as deposit, and 50% before shipping.

Q5 - Is it possible to design and produce automatic loading & unloading devices?

A5 - Yes, Engineer can design special auto feeding device according to your products.

But please provide the drawing of your products before that.

Q6 - How will you solve problems that we face during using your machine?

A6 - A.

Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.



B.

Will arrange engineers to solve problems at the scene, if possible.
