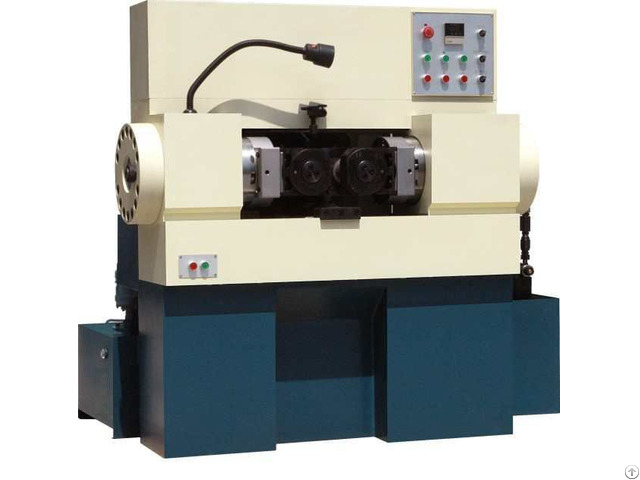

Fd 25t Automatic Thread Rolling Machine - China

1 - Automatic feeding with adjustable brackets

2 - Speed is adjustable for different products

3 - 75mm hole diameter for SKD11/DC53 thread rolling dies

4 - Max.

Rolling pressure is about 250KN

5 - It is easy to operate and maintain the machine

6 - CE, ISO9001-2008

Specification Working diameter 12-80mm Thread pitch 1.0-8mm Thread length In feed or Thru feed Spindle speed 16/27/37/62rpm (variable speed) Outside diameter of rolling die 170-220mm Inside diameter of rolling die 75mm Thickness of rolling die 160mm Feed stroke 0-12mm Total machine power 14KW Max rolling pressure 25T Supply voltage 380V 3P 50Hz Weight(reference) 3560(KG) Package Dimension(L*W*H) 1630*1650*1750mm Dimension(L*W*H) 1580*1600*1650mm Q1 - Are you factory or trading company ?

A1 - We are factory of manufacturing thread rolling machine and dies by ourselves.

Welcome to visit our factory, if possible.

Q2 - What is the delivery time ?

A2 - Usually 15-25 working days for machine, and 10-15 working days for dies.

Q3 - What is the warranty time for machine?

A3 - Usually 12 months from B/L date.

Q4 - What is the payment term?

A4 - T/T, Western Union, Money Gram, Alipay, PayPal.

50% as deposit, and 50% before shipping.

Q5 - Is it possible to design and produce automatic loading & unloading devices?

A5 - Yes, Engineer can design special auto feeding device according to your products.

But please provide the drawing of your products before that.

Q6 - How will you solve problems that we face during using your machine?

A6 - A.

Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.



B.

Will arrange engineers to solve problems at the scene, if possible.
