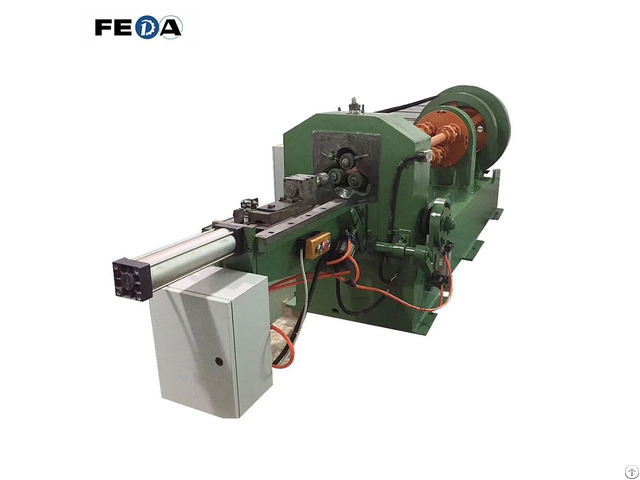

Fd 30d Screw Making Machine - China
price: 33650.00 Dollar US$
1 - Hot rolling with intermediate frequency heating furnace
2 - Automatic feeding by robot
3 - Speed can be adjustable
4 - Only need 5-8 minutes to change rolling dies
5 - CE, ISO9001-2008
6 - Three rollers to keep precision shape Specification
Working diameter 12.7-27mm
Range of pitch rolled 6-13mm
Length of thread rolled Max.
300mm
Spindle speed 280rpm Outside diameter of rolling die φ80.5mm
Inside diameter of rolling die φ39mm Thread rolling die length 60mm
Output(pcs/min) 10-15(pcs/min)
Main power motor 22KW
Supply voltage AC380V / 50Hz
Weight(reference) 3900KG
Motor Dimension 110*130*90mm
Machine Dimension(L*W*H) 4100*1100*1300mm
Q1 - Are you factory or trading company ?
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, Shenzhen , GuangDong , China
- Email:
- Website: https://szfeda.en.alibaba.com
Published date: July 17, 2025
- Business Description: We can provide thread rolling machine and dies for making thread on bolts, thread rods, fasteners, etc.
Can provide related automatic feeder, to save time and cost.
