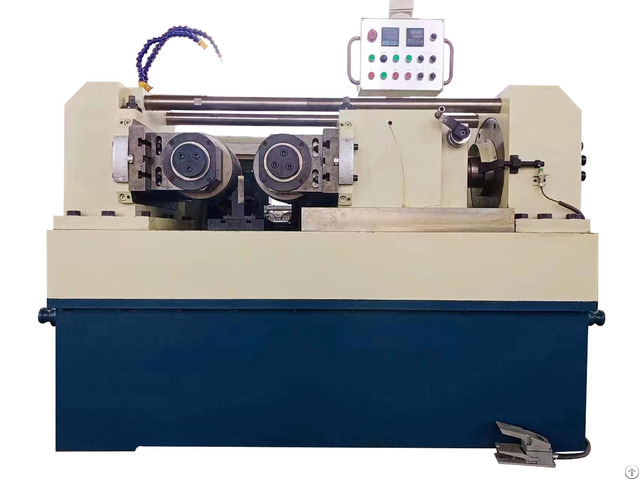

Fd-80t Screw Making Machine Automatic Loading Device - China
price: 58950.00 Dollar US$
Specification
Working diameter 12-130mm
Thread pitch 1.0-15mm
Thread length In feed or Thru feed
Spindle speed 16/21/27rpm (variable speed)
Outside diameter of rolling die 220-300mm
Inside diameter of rolling die 100mm Thickness of rolling die 250mm
Feed stroke 0-20mm
Mian motor 30KW
Hydraulic motor 5.5KW
Max rolling pressure 80T
Supply voltage 380V 3P 50Hz
Weight(reference) 7800(KG)
Package Dimension(L*W*H) 2550*2250*2000mm
Dimensio n(L*W*H) 2450*2150*1850mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: 13312913043
- Address: Songgang Street, Shenzhen , China , China
- Email:
- Website: https://www.szfeda.com/
Published date: August 8, 2025 - Modified date: August 8, 2025
- Business Description: Thread rolling machine, thread rolling dies, screw making machine, flat die thread rolling machine, thread rollers, thread rolling machinery, auto lathe machine, tapping machine, heading machine, bolt and nuts, thread rods
