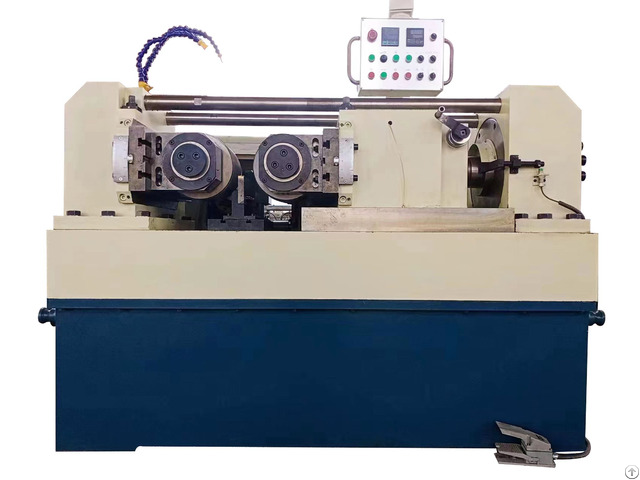

Fd 80tthread Rolling Machine Flat Die - China
price: 58950.00 Dollar US$
1 - Automatic feeding with adjustable brackets
2 - Speed is adjustable for different products
3 - 100mm hole diameter for SKD11/DC53 thread rolling dies
4 - Max.
Rolling pressure is about 800KN
5 - It is easy to operate and maintain the machine
6 - CE, ISO9001-2008
Specification Working diameter 12-130mm Thread pitch 1.0-15mm Thread length In feed or Thru feed Spindle speed 16/21/27rpm (variable speed) Outside diameter of rolling die 220-300mm Inside diameter of rolling die 100mm Thickness of rolling die 250mm Feed stroke 0-20mm Mian motor 30KW Hydraulic motor 5.5KW Max rolling pressure 80T Supply voltage 380V 3P 50Hz Weight(reference) 7800(KG) Package Dimension(L*W*H) 2550*2250*2000mm Dimension(L*W*H) 2450*2150*1850mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, Shenzhen , GuangDong , China
- Email:
- Website: https://szfeda.en.alibaba.com
Published date: February 25, 2025
- Business Description: We can provide thread rolling machine and dies for making thread on bolts, thread rods, fasteners, etc.
Can provide related automatic feeder, to save time and cost.
