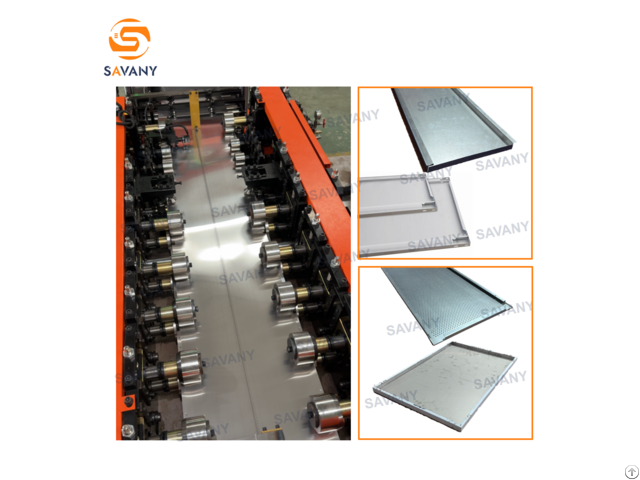

File Electrical Cabinet Shelf Panel Roll Forming Machine - China

Overview

SAVANY offers custom roll forming machines for various metal profiles from simple C/U/Z sections to complex custom shapes.

Our machines integrate all key stations into one continuous production line: uncoiling, straightening, servo punching, roll forming, and cut-to-length.

Available in both semi-automatic and fully automatic configurations.

Key Features

Continuous & Efficient Production

Operating speed up to 30 m/min, 24/7 continuous running with only 1–2 operators, significantly reducing labor costs.

High Precision

CNC servo control ensures length tolerance ≤ ±0.5 mm and bending angle deviation ≤ ±0.5°.

Rollers are made of Cr12MoV (HRC58‑62) and precision‑ground on Japanese CNC lathes.

Strong & Durable Structure

Main frames and side plates are machined on CNC machining centers using Q235 steel, ensuring long‑term stability and vibration resistance.

Integrated Automation

Optional in‑line processes: uncoiling, leveling, punching, notching, embossing, cutting, and automatic stacking – all in one continuous line.

Energy Saving & Eco‑friendly

Cold forming process requires no heating, consumes over 65% less energy than hot bending, and produces minimal scrap.

Technical Parameters (Typical) Parameter Value Range

Material thickness 0.3 – 8.0 mm (depending on material)

Material width 50 – 1300 mm (customizable)

Coil weight capacity 3 – 10 tons

Forming speed 10 – 30 m/min

Cutting tolerance ±0.5 mm

Roller material Cr12MoV (HRC58‑62)

Main frame CNC‑machined Q235 steel

Control system PLC + HMI touch screen

Power supply 380V / 50Hz (or as required)

Materials Processed

Low carbon steel High strength steel (AHSS) Galvanized / pre‑coated steel Stainless steel (201, 304, 316) Aluminum and aluminum alloys Copper Typical Products Made by This Machine

Ceiling panels & T‑bar / M‑bar profiles Door frames (elevator, residential, industrial) Cable trays & cable ladders Purlin (C/Z/U profiles) Solar panel mounting rails Drawer slides Decorative trims Guardrail profiles Roofing sheets And any custom profile based on your drawing Customization Service

SAVANY provides complete turnkey solutions: Drawing review and profile analysis Roller design and tooling manufacturing Whole production line engineering Installation, commissioning, and operator training Lifetime remote technical support We build every machine according to your specific profile drawing and production requirements.

Why Choose SAVANY?

✅ 20+ years of roll forming experience ✅ Fast spare parts delivery (within 7 working days) ✅ On‑site service available worldwide (upon request) ✅ Competitive price with quick ROI Get a Quote

Send us your profile drawing (PDF/DWG) and tell us your required thickness, material, and target output.

We will provide a customized layout and quotation within 7 working days.

WhatsApp: +86 153 6294 9382

Website: https: //savanymachine.

com

Company Contact:

• Posted By: Savany Machine Co., Ltd.

• Phone: +8615362949382

• Address: Workshop B8, Qili Industrial Park, No. 13 Dashangang Road, Xinjing Village, Xiaotang, Nanhai Distric, Foshan , 广东 (Guangdong), China

• Email:

• Website: https://savanymachine.com/

• Business Description: Savany Machine Co., Ltd. is a leading manufacturer of custom roll forming machines, press brakes, and complete metal forming production lines.

  Located in Foshan, Guangdong one of Chinas most dynamic industrial regions we have been serving clients worldwide with tailor‑made solutions for sheet metal processing.

  What We Do

  We design and build non‑standard automated equipment for a wide range of profiles and applications.

  Our core products include:

  Roll forming machines for various sections (C, U, Z, Omega, hat channels, etc.

  )

  CNC hydraulic and electric press brakes

  Punching and notching lines

  Complete forming lines for door frames, shelf panels, cable trays, ceiling panels, and more.

  Every machine is customized according to the customers drawing and production requirements.

  We work closely with each client to develop equipment that exactly matches their profile geometry, material thickness, and output target.

  Engineering & Quality

  Our engineering team has decades of combined experience in cold roll forming and sheet metal bending.

  We use advanced design software and in‑house testing to ensure that each line runs smoothly, maintains tight tolerances, and delivers consistent performance.

  Key components are sourced from well‑known brands (Siemens, Schneider, Mitsubishi, etc.

  ), and all machines undergo a full factory acceptance test before shipment.

  Why Choose SAVANY

  True customisation we build the machine around your profile, not the other way around.

  Direct factory price no middlemen, competitive pricing.

  Short lead time efficient production planning.

  Reliable after‑sales remote troubleshooting, spare parts supply, and on‑site support if required.

  We are committed to helping our customers produce better, faster, and more efficiently.

  Whether you have a detailed CAD drawing or just an idea, we are ready to turn your idea into a working production line.

  Contact us today to discuss your project.
