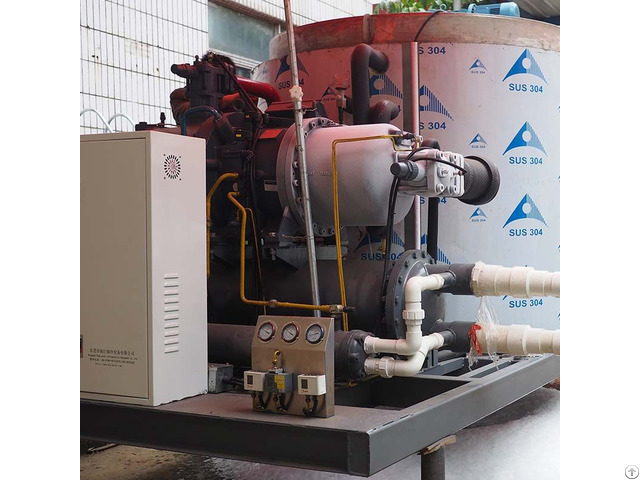

Flake Ice Machine 15t - China

The marine ice machine is a kind of sea water ice machine installed on the fishing boat.

15T/Day Marine Flake Ice Machine Application

The flakes have no sharp edges and corners and will not stab frozen objects.

It can enter the gap between the objects to be cooled, reduce heat exchange, maintain the temperature of ice, and have a good moisturizing effect.

Flake Ice Feature

The flakes are flakes, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, irregular in shape and about 12 to 45 mm in diameter.

High Reliability and Low Breakdown Rate

High Efficiency and Energy Saving

Simple Maintenance and Convenient Moving

15Ton/Day Industrial Flake Ice machine specification

Item Name Sea Water Ice Machine Fresh Water Ice Machine

Model YTC-15TS YTC-15TF

Compressor power 80HP 60HP

Ice Evaporator Stainless Steel 304 Carbon Steel

Daily Output 15000kg/24H 15000kg/24H

Ref.

Capacity(Kcal) 111800 83850

Temp.

Evaporator(℃) -18(℃) -22(℃)

Temp.

Condenser(℃) 40(℃) 40(℃)

Total Power (kW) 66.39 53.42

Cooling Mode Water Cooled Water Cooled

Power Supply 380V/3PH/50Hz 380V/3PH/50Hz

Refrigerant R404 R404

Unit Weight 2550 2350

Unit Size 3500x 2155x 1950mm 3500x 2155x 1950mm

Ice Storage Size Customized Customized

The non-standard power supply needs custom compressor likes 3PH/380V/60hz.

Standard cooling mode for Industrial Flake ice machine kindly supports water cooled.

8Ton per commercial flake ice machine are widely applied in supermarket, seafood market, food processing facility and vegetable preservation industrial.
