Flo P 2040 Open Pipe Profile Fiber Laser - China
price: contact company for price

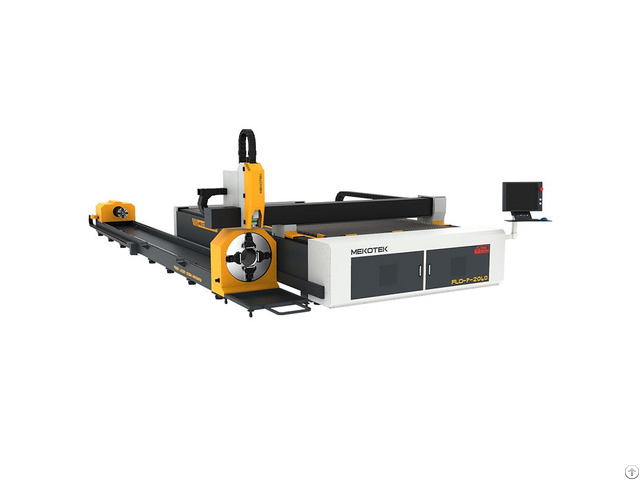

FLO- P- 2040 open single table, pipe profile metal fiber laser cutting machine.
It is the first choice for small and medium-sized metal laser cutting companies.
The cheapest fiber laser cutting, the best performance metal laser cutting machine! It is a 1000W, 2000W, 3000W power fiber laser cutting machine.
Technical Specifications
FLO 2040 fiber laser cutting machine open table, cutting area 2000×4000 mm, overall dimensions 3830× 8920× 1980 mm, pipe overall dimensions 6100× 200 mm, Raycus fiber laser source, Aram and Japanese mechanical parts Japan Smc or German Festo pneumatic system, Spanish Fagor or Far East Cypcut, control system uses Weihong, Mpower, Yaskawa or Delta servo motor system, 5500 kg steel precision processing body.
FLO- P- 2040 Technical Specifications
Feature
Working Area (mm) 2000x4000 mm
Maximum Loading Capacity (Plate/ Profile) (kg) 1200 / 350 kg
XY Axis Travel (mm) 2020x 4050 mm
Z Axis Travel (mm) 400 mm
XYZ Axis Slide 4- Point Contact Ball / 4-Point Ball Cage
XY Axis Drive System Rack and Pinion / Rack and Pinion
Z Axis Drive System Ball Screw / Ball Screw
XY Axis Speed (Composite Speed) (m/ min) 80 m/ min
Z Axis Speed (m/ min) 30 m/ min
XY Positioning Accuracy (mm) ±0.05 mm
XY Repetition Accuracy (mm) ± 0.03 mm
Max.
Profile Length (mm) 6100 mm
Max.
Profile Diameter (mm) Ø220 mm
Laser Resonator Han's Laser / Raycus / MAX
Laser Power 1000W, 1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20000W, 30000W, 40000etc
CNC System Cypcut / ESA / Mekotek
Laser Cutting Head BOCI / Han’s / Raytools
Assist Gas for Cutting Air / Oxygen / Nitrogen - Air / Oxygen / Nitrogen
Cooling Method Water cooling / Air cooling
Machine Weight (kg) 5500 kg
Machine Dimensions (mm) 3700x 8667x 1980 mm
Graphic Format dwg/ dxf/ stp
Voltage/ Frequency 380V, 220V / 50 Hz, 60Hz
Certificates CE / ISO
Warranty 2 Years / 2 Years
FLO- P- 2040 Cutting Thickness
Material 1000 W 2000 W 3000 W 4000 W
Carbon Steel 8 mm 12 mm 15 mm 18 (Max.
20) mm
Stainless Steel 3 mm 5 mm 6 mm 8 (Max.
10) mm
Aluminum 2 mm 3 mm 4 mm 6 (Max.
8) mm
Meter 2 mm 3 mm 4 mm 6 mm At Wanxuan Laser, we provide advanced open laser cutting machine solutions that combine speed, precision, and flexibility.
Our machines are designed to meet the evolving needs of modern metal fabrication industries.
As a trusted open fiber laser supplier, we understand that efficiency and accessibility are key to high-volume production.
Company Contact:
- Posted By: Shaanxi Wanxuan Technology Co., Ltd.
- Phone: 18109227026
- Address: Room 10806, Building 1, Wenjingtianxia, No. 8 Fengxie Road, Economic and Technological Development, Xi'an , Shaanxi , China
- Email:
- Website: https://www.wanxuanlaser.com/
Published date: August 4, 2025
- Business Description: Shaanxi Wanxuan Technology Co., Ltd. is a company that sells metal fiber laser cutting machines and their accessories.
It is a brother company of Turkey's Mekotek Makine San.
ve Tic.A.Ş and supplies its procurement projects in China all year round.
Mekotek Laser Production is a company that produces metal fiber laser cutting machines.
The company has sold and repaired hundreds of machines in the industry, and has continuously expanded its production capacity and service network.
In 2022, it will incorporate the Ankara factory into its production network, increasing its production capacity to 12,000 square meters.
The production network started in a 5,000 square meter closed area factory in Silivri, Istanbul.
Fiber laser cutting machine sales and services are provided in many regions in a very short time.
We have become a stable supplier of Mekotek in China.
Our main business scope includes: mechanical equipment sales; CNC machine tool sales; additive manufacturing equipment sales; building decoration materials sales; insulation materials sales; non-metallic minerals and products sales; special equipment repair; oil drilling special equipment sales; high-performance sealing materials sales; optoelectronic devices sales; metal surface treatment and heat treatment processing; daily necessities sales; electronic products sales; office supplies sales; goods import and export; food import and export; surface functional materials sales; anti-corrosion materials sales; energy-saving management services; environmental protection consulting services technical services, technology development, technical consulting, technical exchanges, technology transfer, technology promotion; new materials technology research and development; emerging energy technology research and development, etc.
The main business is the export of mechanical equipment, and the main exported products are fiber lasers, continuous fiber lasers, fiber laser cutting machines, professional pipe cutting machines, height sensor kits, motors, servo drives, chucks, industrial computers and their accessories, etc.
