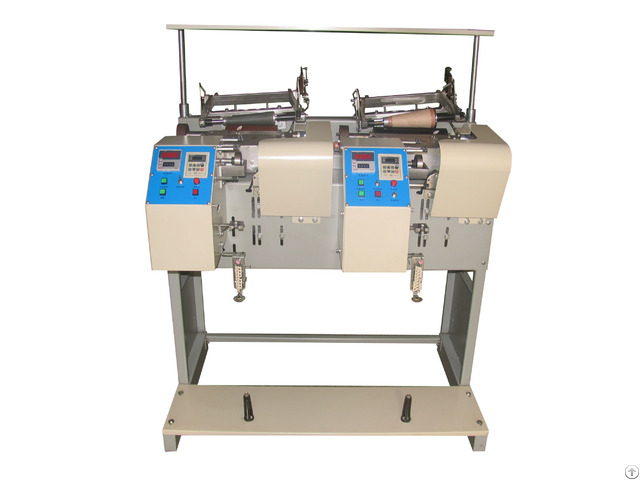

High Speed Cotton Winding Machine - China
price: 1000.00 Dollar US$
Description
High Speed Cone to Cone Winding Machine /Cone Winder/Yarn Winder Specification:
Technical parameters
Number of spindles for each machine: 2
Winding speed: 600 meters/minute
Maximum guide thread stroke 300 MM (can be adjusted mechanically)
Shaping mode: Double-cone shape (can be adjusted mechanically)
Drive mode: Single-spindle control
Rated power: 180w/sepindle
External dimension: 1200*700*1475mm Characteristics:
- Single-spindle drive and control; and winding parameters may be adjusted for single spindle - Length can be fixed electronically, and uniform weight is for winding - The device may detect broken yarn in an electronic way - Heavy-hammer grid-shape tension control unit - Variable frequency control for less energy
Company Contact:
- Posted By: Wuxi yiyuan machinery Co.,Ltd.
- Phone: +8617312709379
- Address: 610 A building.No.100,dicui Road,Binhu Area., Wuxi , Jiangsu , China
- Email:
Published date: July 3, 2019
- Business Description: Wuxi yiyuan mainly manufactures full-automation doubling-spindle pirn winders,large-package pirn winders,precise soft-cone winders,multi-function high-speed bobbin machines,composite twisters,doubling yarn twisters,shoelace waxing machines,multi-function tape handlers,and other customized textile machinery.
Our Products:
- spinning machine
- shoelace waxing machine
- full automation pirn winder
- cotton yarn silk twisting machine
- precision soft cone winding machine
