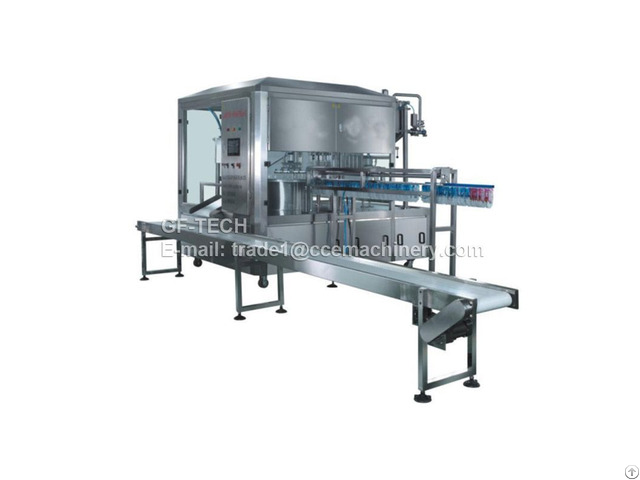

HSD6-3A Spout Pouch Filling and Capping Machine

Spout bag filling and also cap screwing machine is a fully automatic assembly line with such process as automatic pouch loading, vacuuming, pouch-locating and also application filling, nitrogen filling, cleaning up for spout, cap feeding as well as placing, topping, discharging as well as liquid degree regulating.

GF6-3A Spout pouch loading and capping Machine Description

Spout pouch filling and cap screwing equipment is a totally automated assembly line with such procedure as automated pouch loading, vacuuming, pouch-locating and also dosing dental filling, nitrogen filling, cleaning for spout, cap feeding as well as placing, capping, releasing as well as liquid level regulating.

Regularity converter controls motor speed.

Not only it can be connected to CIP cleaning system, PLC control and touch screen system, equipped with the air-purifying system and risk-free guard button, yet likewise some features can be included or removed according to the consumer's need.

This machine is suitable for packing jelly, soy milk, yogurt, mineral water, juice, gelato, edible oil, seasoning, cleaning agent and also various other chemical items and more.

Main Technical Parameters:

Name details

Dimension: 4mx2.2m (Included pouch feeder, can micro-adjust as requirement)

Filling volume 450-750ml

Product quantity volume ±1%, percent of pass over 99.8%

Filling speed 2000-3000pcs/h

Power supply AC380V, 3-phase 4-wire

Driving power: 1.5kW, heat preservation power: 1kW.

Air pressure: 0.6-0.8Mpa Max air consumption: 0.5 m³/min
