Hypet 180kg H 38crmoala Single Screw Extruder Pe Pipe Production Machine Sj60 38 - China

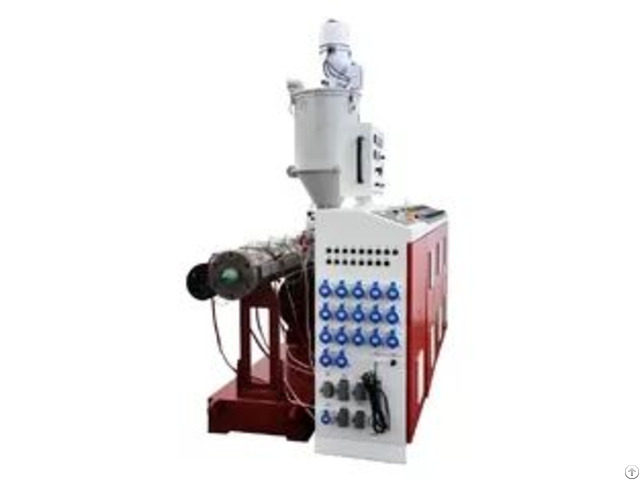

HYPET Single Screw SJ60/38 PE Pipe Extruder For PE Pipe Production Special features: Longer LD make easier and better plasticizing process.

Special feeding device, open spiral groove, large feeding quantity, easy to replace, low cost.

Full extruder designed in one complete system and keep the minimun comsumption but maximum output.

Special bimetal barrel can be customized to double the lifetime Specification SN Parts name Specification Description

1 Extruder Extruder model SJ-60/38

Output 180 kg/h

Center height 1, 100mm

Weight 2, 200kg

2 Electrical Control system Detachable control panel Siemens PLC Components brand Siemens, RKC, ABB, etc.

Features 1 - Cabinet is detachable, easy to install, maintain and transport; 2 - With air conditioner; 3 - Adopt the world famous brand electrical components, such as Siemens, ABB, RKC Schneider, and so on.

3 Screw Diameter Ø60 mm

Screw ID ratio 38: 1

Material 38CrMoAlA + special alloy

Finish Nitrogen-filled (0.50~0.70mm depth) polish

Max rotate speed 120 r/min

Core of the screw Auto control for temperature

Features 1 - German technology design, to ensure the highest output and good good plasticizing at the same power.

2 - 38CrMoAlA nitriding HV900, depth 0.4-0.6mm surface sprayed alloy； 4 Barrel Material Bimetal barrel inside in two layers

Inside finish Nitrogen-filled (0.50~0.70mm depth)

Heating control area 6 areas

Heating way Copper cooling fins with ceramic heater

Heating power 15 kW

Cooling system Low-noisy barrel cooling fan

Cooling power 0.25kW x 6 sets

Features Adopt ceramic heaters, high cost but fast heating, high temperature can be controlled 5 Gear box Housing material Ductile iron QT-500

Gear material 20CrMnTi

Gear surface Hardened and ground in high precision

Axis material 40Cr 6 Driving motor AC motor power 45 kW

AC inverter controller ABB
