Jw Fg150s Automatic Powder Filling And Packing Machine - China

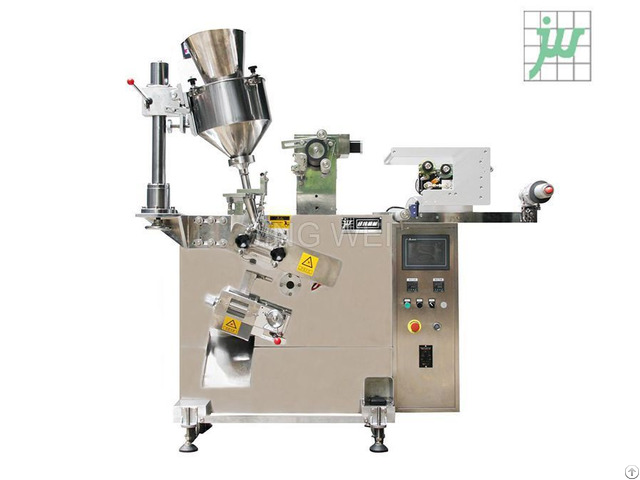

JW-FG150S-Automatic Powder Filling and Packing Machine

This model is the model with the fastest packaging speed, the most beautiful bag shape and the best sales in our powder filling and packaging machine series.

Its speed can reach to 150 packs per min.

Because of the single roller technology, it can run at high speed and the packaging efficiency is significantly improved.

It adopts auger filling, step pulse metering with high accuracy is obtained.

Advantage & Features

1 - Easy Operation, PLC control, HMI operation system, simple maintenance.

2 - Suitable for powder material packing( Above 60 mesh), such as flour, chemical powder, herbal powder and etc.

3 - Machine Material: SUS304

4 - Filling: auger filling

5 - High -precision, Accuracy rate ±1.5%

6 - Zigzag cutting &Line cutting in chain bags.

Packing Application

Various powder and granule flavour, chemical powder, herbal powder and etc Technical Parameters

Packing Speed 60-150 bags/min(depends on the bag and filling material)

Filling capacity ≤50ml(It can be customized for oversize)

Pouch length 50-160mm(it can change the bag former for oversize)

Pouch width 50-90mm(it can change the bag former for oversize)

Sealing type Three sides sealing

Sealing steps one step

Film width 100-180mm

Max.

rolling diameter of film ¢400mm

Dia of film inner Rolling ¢75mm

Power 2.8KW, three-phase five line, AC380V, 50HZ

Machine dimensions (L)1300mm x(W)900mm x(H)1680mm

Machine weight 400KG

Remarks: It can be customize for special requirements.
