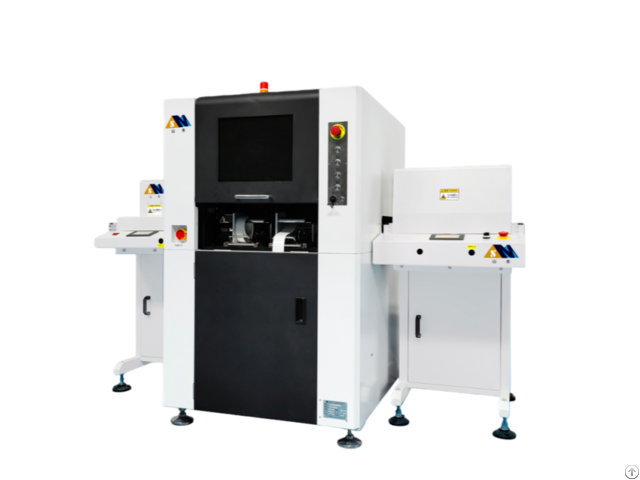

Labeling Machine - China

• Machine dimensions: L: 1110 W: 1300 H: 1600

• Labeling range: 330*300mm

• Industrial Control: For Advantech industrial control, ensuring more stable and reliable operation.

• Servo system: MITSUBISHI

• Weight: ≈ 600kg

• Input power: AC ~220V 2KW

• Labeling speed: within 1.5s/pc

• Label size: Min: 4*4mm, Max: 50*100mm.

Product dimensions: 22*17mm/ 21*16mm/ 16*12mm/ 10*10mm/ 15*13mm

• Labeling angle: 0~360 degrees

• Nozzle quantity: 4 sets

• MARK positioning: MARK positioning correction, using the camera to assist in determining whether the PCB board is placed correctly to avoid deviation.

• Labeling method: Industrial printer (print and apply immediately).

• Basic functions: Leakage detection, top plate clamping, automatic track adjustment.

• Board feeding direction: left in, right out, using tracks for board feeding and discharging。

• Board thickness: 0.6-5mm, the board thickness can accommodate more types of PCBs.

• Configuration options: Deviation correction function, barcode reading function.

Labels must not be misapplied, wrinkled, bubbled, lifted, dirty, damaged, or skewed beyond the shield cover edge.

• After the panel is separated, the material is placed in standard trays, and the trays are stored in a magazine-style manner.

• data collection, communication protocol • Operation mode: online

• Equipment dimensions: (mm) L900*W990*H1400 (Max)

• PCB size range: 50*50 to 330*330mm

• PCB thickness: 0.4~5mm

• Single track: Single track (with automatic width adjustment)

• Corresponding product: meets the mounting requirements of paper labels for PCBs

• Pickup accuracy: ±0.1mm Mounting accuracy: ±0.1mm

• Repeat accuracy: ±0.05mm

• Mounting angle: meets requirements for different mounting angles from 0° to 360°

• Supply Feida: 2 pieces

• Nozzle quantity: 2

• MES functions: Personalized MES integration (open communication ports, provide communication protocols)

• Adjustable mounting position: meets requirements for mounting at over 50 locations.
