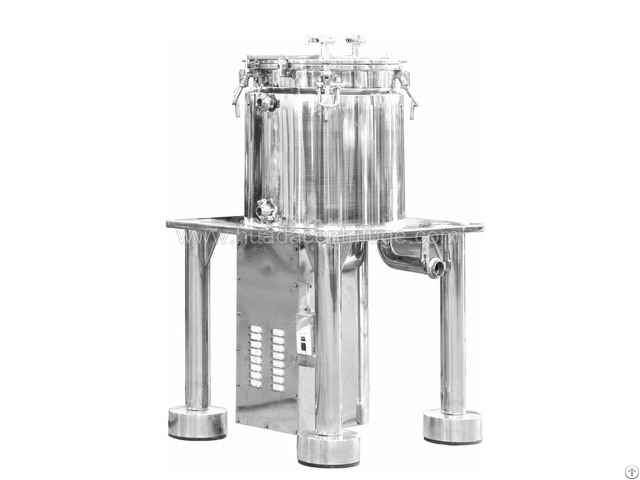

Low Temperature Alcohol Extraction Centrifuges - China

low-temperature Alcohol Extraction Centrifuges

This product is a special low-temperature extraction centrifuge, which is mainly used for steep extraction and solid-liquid separation of herbs, plant roots, etc.

Closed-Loop System

MAIN FEATURES:

304 and 316L Sanitary Stainless-Steel Construction

Jacket Insulationl Easy Material Loading/ Unloading

Bi-Directional Agitation

Auto/Manual Controlsl Digital

HMI Interface

Variable Speed Control

Easy Material Loading/ Unloading

Heavy-Duty Spin Drying EXTRACTION CYCLE

Huada Alcohol extraction centrifuge offers 3 Program cycles: 1 - Spray wash; 2 - Agitation wash; 3 - Spin dry cycle.

Operator fills filter bag with milled plant material and places it in the machine.

The centrifuge is then flooded, and bi-directional agitated for full target compoundremoval.

After the wash, the plant material undergoes a medium duty spin dry till high speedspin dry to remove the liquid as much as possible.

The alcohol wash is then collected to a tank for further processing

WORKING STEPS

1 - System loading: A pre-loaded closed filter bag is placed into the basket and the system is sealed to begin the cycle.

2 - Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the program manu where the RPM and cycle times are set to the operator’s specifications.

3 - Alcohol Fill: Alcohol is pumped from source tank into the centrifuge via an inlet valve or spray nozzle.

4 - The Wash cycle: The plant material undergoes either a spray wash or an agitated wash with a set number of bi-directional agitations.

5 - System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained.

The alcohol wash is pumped to a properly rated storage tank for further processing.

6 - Spin Dry Cycle: The 'Spin Dry' program is selected on the program and the drying cycle is started.

The wet plant solids are spun dry of the remaining alcohol mixture within.

7 - System Unloading: when the dry cycle is complete, centrifuge is unloaded by taking the filter bag out from the basket.

8 - Repeat Process.

Ethanol Extraction Machine Exporter: Jiangsu Huada Centrifuge Co., Ltd., a subsidiary of SCIMEE (stock code: 300425), was established in 1993 in Zhangjiagang, an emerging port city in China.

It is a leading domestic centrifuge manufacturer.

Huada holds a dominant position in the domestic centrifuge market, which to a great extent is attributed to its leading role (leading both users and peers).

Although it has a number of new products and new technologies, it is not content with having centrifuges meet the separation requirements in the initial use.

It is more concerned about the long-term performance of the centrifuge and would like to solve problems such as high productivity, high washing rate, low crystal breakage rate, low residue rate and low energy consumption for customers and provide customers with safe, intelligent and environmentally friendly separation equipment and solutions.
