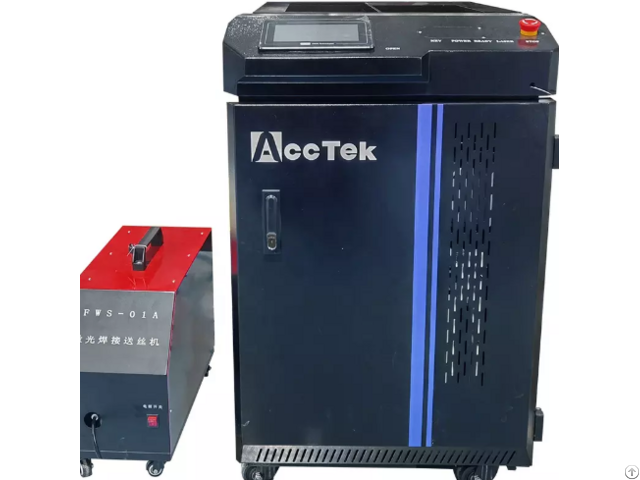

Maquina De Soldar Con Laser 3 In Welding Machine - China
price: 5900.00 Dollar US$
Description
Parameter
1
Model
AKH-1000 / AKQ-1000 / AKH-1500 / AKQ-1500 / AKH-2000 / AKQ-2000
2
Laser Power
1000W / 1500W / 2000W
3
Range of adjustable power
1-100%
4
Central wavelength
1064nm
5
Line length
Standard 10m, maximum support 20m
6
Way of working
Continuous/modulation
7
Speed range
0-120mm/s
8
Repeat precision
±0.01mm
9
Cooling water
Industrial thermostatic water tank
10
Laser Type
JPT / Raycus / Reci
11
Working humidity
<70% no condensation
12
Focal Spot Diameter
0.2-2mm
13
Welding gap requirements
≤0.5mm
14
Welding depth
0.1 - 4mm
15
Cleaning efficiency
12 ㎡/h
16
Scanning Width (mm)
10-80
17
Expected Focal Distance(mm)
160mm
18
Pulse Frequency
0.1-100Hz
19
Voltage
380V
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China
- Email:
- Website: https://www.acctekgroup.com/
Published date: December 22, 2022
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
