Nai Crystal For Well Logging - China

Specification Setting Information

Density(g.

cm-3)

3.67

Radiation length(cm)

2.59

Decay constant(us)

0.23us

Emission peak(nm)

415

Light yield(%NaI: Tl)

100

Melting point(°C)

651

Hardness(Mho)

2

refractive Index 1.85

Hygroscopicity

Strongly

Cleavage

-100

Product Description Product Details

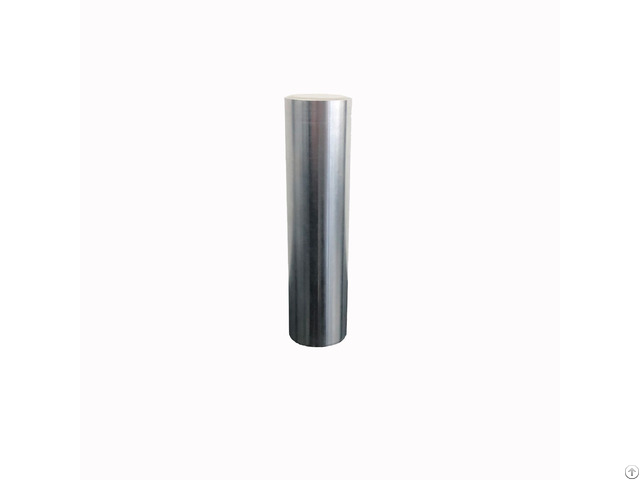

NaI(Tl) is a kind of scintillation crystal with good properties.

Single crystal NaI(Tl) is grown from pure NaI raw material doped with TlI.

Its emission maximum is 415nm, which is well matched to the sensitivity curve of photomultiplier tubes (PMTs) with bialkali photocathodes.

Product Details

The material has a very high luminescence efficiency, and exhibits no significant self absorption of the scintillation light and has good resolution ability to X-ray and γ-ray.

Product Details

Press-forged NaI(Tl) crystal is derived from a unique manufacturing process in which single crystal ingots are recrystallized under heat and pressure.

The characteristic improves mechanical strength but has no effect on the scintillation performance.

Product Details

So it is widely recognized as suitable alternatives to single crystal scintillators in those applications where thermal and mechanical shock are encountered.

Another feature of pressforged NaI(Tl) is the possibility to manufacture complicated detector geometries directly without extensive machining.

Relative light output(%)

100

Melting point(℃)

651

Mohs hardness

2.1

Thermal expansion coefficient

47.4 x 10-6 K-1

Cleavage plane

(100)

Light yield

38x103Photons/MeVγ


Wavelength of emission maximum(nm)

415

Primary decay constant(ns)

250

Density(g/cm3)

3.67

Refractive index

1.85

Hygroscopicity

yes

Afterglow

0.3-0.5%@6mms
