Painting And Blasting Rotator Turning Rolls Hgk Series - China

Painting & Blasting Rotator Turning Rolls - HGK Series Painting Blasting Rotator china welding rotator Stable Rotating Process

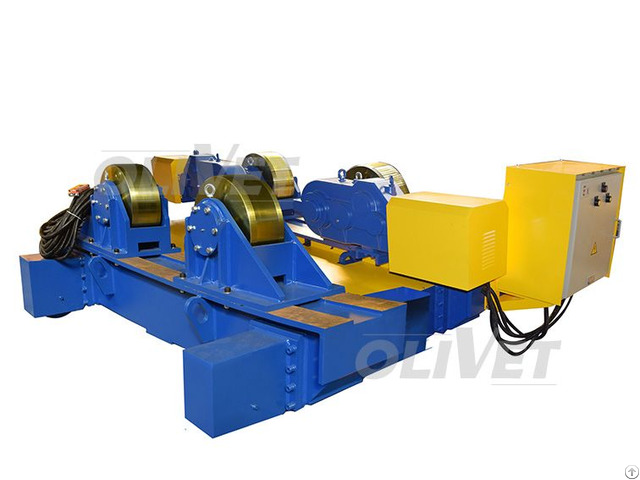

The HGK series Painting rotator and blasting rotator (adjustable turning rolls) has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling.

A hand held, wireless control pendant provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.

Explosion electrical system equipped to make sure a safe working situation.

Features

A.

For turning and positioning vessel or tanks in the sections of chemical engineering, container building, petrochemical and pipeline construction.

B.

Welded, robust steel construction.

C.

Adjustable rotating speed.

D.

Large range center distance to match diffrent diameter of workpiecec

E.

Compact and robust design, easy to operate.

F.

Explosion motors and control system Scope of Delivery

A.

1 Power and 1 Idler turning rolls

B.

1 Electric control system

1 explosion control panel

1 wireless remote pendant Welding Rotator Main Technical Parameters

Model Max.

load Workpieces dia.

Roller material Roller dia.

Roller width Rolling speed Roller motor Travelling motor

HGK-40 40, 000kg ?500-?5, 000mm Pu

Steel ?400mm 220mm

180mm 200-20000mm/min 2x1.5kw 2x0.75kw

HGK-60 60, 000kg ?500-?5, 000mm Pu

Steel ?450mm 2x180mm

200mm 200-20000mm/min 2x2.2kw 2x1.1kw

HGK-80 80, 000kg ?800-?6, 000mm Pu

Steel ?450mm 2x180mm

220mm 200-20000mm/min 2x3kw 2x1.5kw

HGK-100 100, 000kg ?800-?6, 000mm Pu

Steel ?500mm 2x200mm

220mm 200-20000mm/min 2x3kw 2x2.2kw Welding Rotator contain self-Adjusting welding rotator and adjustable welding Rotating Machine, you can't miss the single-driving self-alignment welding turning-roll in our company.
