Pd 32se Wire Cutting Machine - China

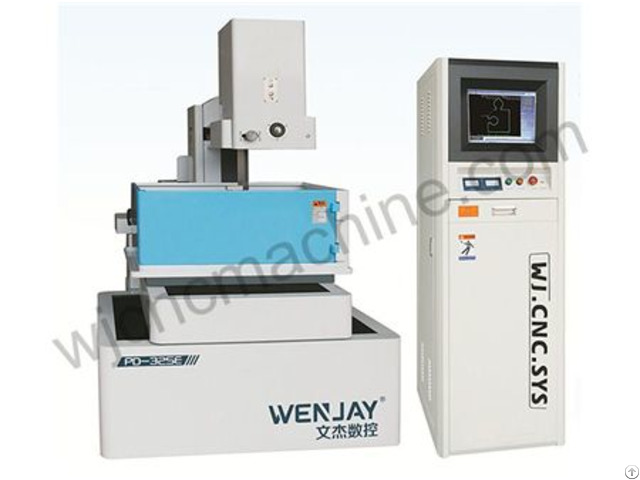

PD-32SE

Deluxe Medium Speed Wire-Cutting Machine Description

Machine tool type PD-32SE/ST

Worktable Size (W*L) 760×520mm

Max trip of X, Y-axis of the worktable (Y×X) 400×320mm

Max cutting thickness 250mm

Max load weight 300kg

Max cutting efficiency 180mm²/min

Max processing current 7A

Optimum surface roughness First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um

Cutting accuracy of medium wire-moving cutting machine Line≤±0.0025mm, taper≤±0.01mm

Hop accuracy 0.01mm/0-200mm, 0.015mm/0-350mm, 0.02mm/0-500mm

Max cutting taper ±3°/80mm

Electrode wire diameter range (molybdenum wire) 0.12-0.25mm(standard configuration 0.18mm)

Driving mode X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation

Cutting fluid box configuration High pressure slow wire filtration, volume 100L

Cutting fluid ratio Dick liquid mixed with pure water, concentration 8-12

Power consumption of Wenjie complete machine ＜2KW

Power supply Three-phase four-wire 380VAC/50HZ

Host weight 1860kg

Host outline size (L*W*H) 1570×1100×1700mm

Packaging outline size (L*W*H) 1720×1300×1800mm

More information please view here.
