Plasma Arc Welding Machine - China

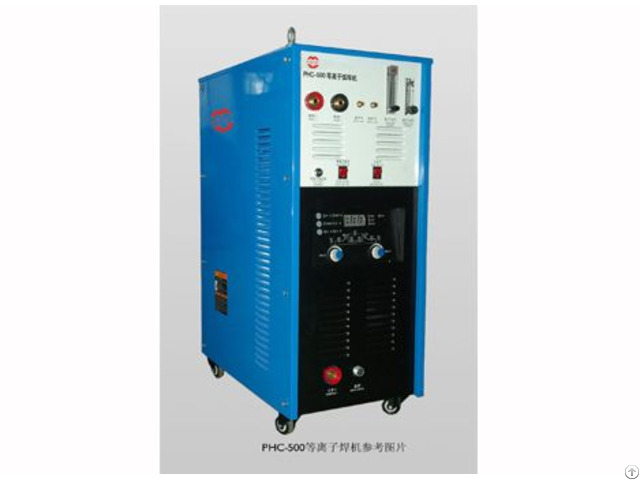

Plasma Arc Welding Machine

Product Description

For different application, our PAW machine is divided into two series.

The LHC series is multifunctional for general plasma arc welding, while the PHC series is only for simply welding technics.

Each machine is well controlled during production so as to be reliable and durable.

Main Specifications

Model LHC-50 LHC-200 LHC-315 LHC-500 PHC-500

Input power voltage (V) 220 3P-380 3P-380 3P-380 3P-380

Rate input power capacity (KVA) 2 12 16 25 25

Current range (A) 1-50 10-200 10-315 10-500 20-500

Duty cycle (%) 100 80 60 60 60

Pilot current range (A) 41644 10 20 20 41942

Flux of Plasma gas (L/min) 0.1-1 0.2-2 0.5-5 41649 41649

Flux of Shield gas (L/min) 41649 41649 41649 41690 41728

Peak current 1-50 10-200 10-315 10-500 20-500

Pluse frequency 2-50 0.2-20 0.2-20 0.2-20 -

Pluse duty cycle 50 1-100 1-100 1-100 -

Start current (A) 1-50 10-160 10-160 10-160 10-160

Stop current (A) 1-50 10-200 10-315 10-500 5-160

Up-slope time (s) 0-5 0.1-10 0.1-10 0.1-10 0.1-10

Down-slope time (s) 0-5 0.1-15 0.1-15 0.1-15 0.1-15

Postflow time (s) 41678 0.1-15 0.1-15 0.1-15 0.1-15

Overall dimension (cm) 40*50*65 70*41*110 70*41*110 70*41*110 70*41*110

Weight (kg) 50 120 120 120 120

Theoretical welding thickness 0.12-1.8 0.3-4.8 0.3-8 0.3-14 0.3-14

Actual welding thickness 0.2-1.2 0.8-3.5 0.8-5 41647 1-10**
