Roof Tile Machine - China

KB125C Roof Tile Machine

Technical data

Equipment type KB-125E/400

moulding speed 6-8Pcs/min

main frame power 7.5kw

main frame weight 5T

external dimension 2700*1600*2480mm

Production Procedures

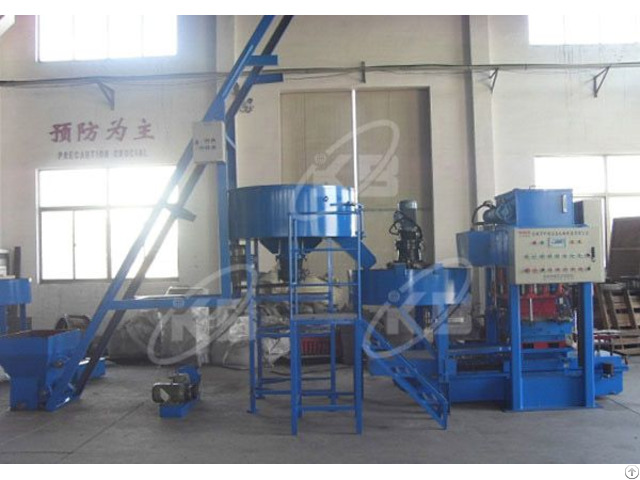

1 - Raw material→ 2 - Bucket type elevator →3 - Wheel type mixer→ 4 - Quantitative constant feeding machine→ 5 - Roof tile making machine→6 - Roof tile pallet→7 - Roof tile curing rack→8.24 hours curing →9 - paintng corlor →8 - Sell out

Each part equipment supporting Items:

No.

Equipment Set

1 Moulding machine 1

2 Mixer 1

3 Elevator 1

4 Feeder 1

5 Air compressor 1

6 Painter 1

Feature

1 - The machine adopts PLC programmable controller featuring fast molding speed, large output, automatic control, man-machine interface, reliable performance and convenient operation, It has 8 pieces/Min, whole hydro-pneumatic production speed, high rate of finished products and high cost performance.

2 - As a competitive concrete products making equipment, its products adopts mortar concrete filter pressing molding and features perfect structure.

Various style, high density, high intensity and accurate size, which can meet the needs of different constructions.

3 - It is multifunctional machine, it can be used to produce various styles of main tiles, ridge tiles.

Edge tiles and ditch tiles after changing the molds as well as different styles of high grade concrete ground tiles, such as terrazzo tiles, polishing and roto-blasting ground tiles and washing ground tiles.

Company Contact:

• Posted By: Yancheng Kebo Hydraulic Machinery Manufacturing Co., Ltd

• Phone: 86-515-86806917

• Address: No.28 Xinwei Road, Xinyang Economic Zone, Yancheng, Jiangsu, China, Yancheng , Jiangsu , China

• Email:

• Business Description: Yancheng Kebo Hydraulic Machinery Manufacturing Co.

  , Ltd.(KBJX) is professional factory for

  producing terrazzo floor tile machine , artificial tile machine , concrete roof tile machine , antique

  tile machine , mosaic paving stone machine , imitation granite curb stone forming machine , step stair

  forming machine , tile polishing machine , marble polishing machine , brick and block machine , stone

  shot blasting machine , calibrating machine , arc chamfering machine , cutting machine , mixer ,

  batching machine , cement silo etc.

  Yancheng kebo machines are exported to different countries such as

  Algeria , Nigeria , Niger , Angola , Uganda , Congo , Zimbabwe , India , Vietnam , Cambodia , Brazil ,

  Ukraine , Uzbekistan , Ecuador etc.
