S And A Water Cooled Chiller For 20kw Router Hsd Spindle - China

S&A water cooled chiller for 20kw router hsd spindle

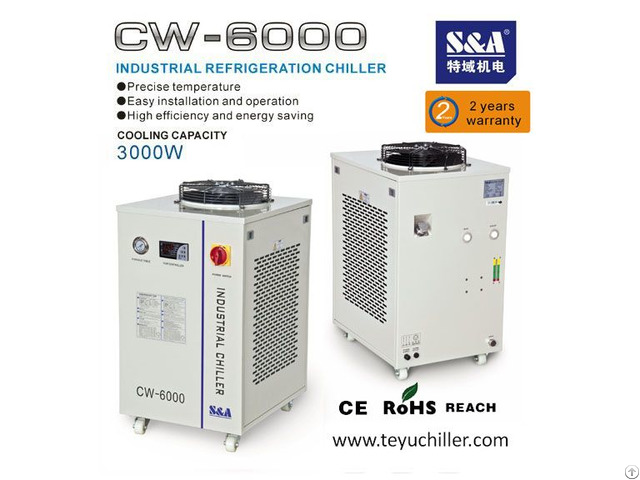

S&A CW-6000 water cooled chiller has 3000W cooling capacity with ±0.5℃ stability, it is fit for 20kw router hsd spindle.

It has 2 temperature control modes as constant temperature and intelligent temperature control.

Under intelligent mode, the water temperature is adjusted according to ambient temperature.

Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

S&A chillers have passed ISO, CE, RoHS and REACH approvals and the warranty is 2 years.

Water chiller parameter:

Voltage: 110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a

Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity: 15L

Max.

lift: 10M/25M/28~53M; Max.

flow: 13L/min- 70L/min

N.

W: 60Kgs; G.

W: 70Kgs;

Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
