Sandwich Panel Production Line - China

price: 7500.00 Dollar US$

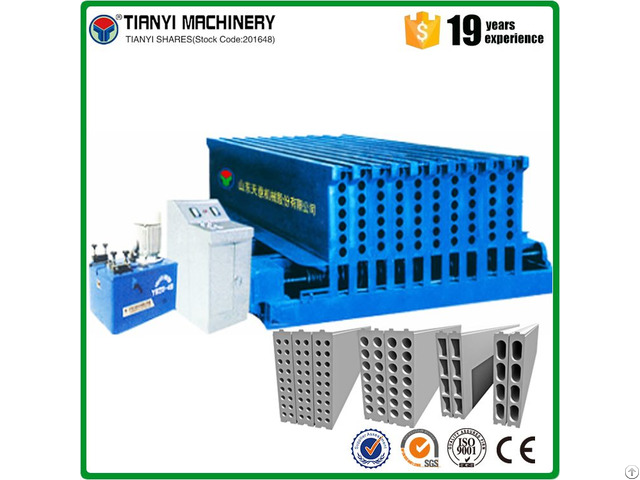

Sandwich Panel Production Line

Products Photos Catalog Sandwich Panel Line Photos Catalog

2017 hot sale eps sandwich panel machine product line manufacture

Machinery Paramenters Overall dimension (LxWxH)mm

3030x1190x2500

Total power(kw) 23.75

Hydraulic working pressure(Mpa) 8

Capacity of hydraulic tank(L) 70

Maximum hydraulic working pressure(Mpa) 16

Power of vibration system(kw) 0.75

Power of heating system(kw) 20

Structural composition Host machine, hydraulic system, power distribution system, heating system, vibration system, core tubles

Raw material of lightweight wall panel

NO.

Material Price(¥)/m²

1 Cement 10

2 Coal ash 0.5

3 Sand 0.4

4 Additive 1.5

5 Labor cost 2

6 water and electricity 0.5

7 Other cost 0.1

Finished products Test ltems National standard Actual index

Compressive strength ≥3.5MPa ≥3.7MPa

Drying shrinkage ≤0.6mm/m 0.37mm/m

Hanging force ≥1000N without 0.5mm crack in 24 hours ≥1000N without 0.5mm crack in 24 hours

Shock resistance without crack shocked by 30Kg sandbag for 5 times without crack shocked by 30Kg sandbag for 5 times

Sound insulation ≥35dB 43dB


Company Contact:


  • Phone: 18754796668

  • Address: NO.260 North Ring Road, shan dong, Asia , China

  • Email: Email


Published date: May 30, 2017

  • Business Description: lightweight wall panel production line

    self-insulation block production line

    flue molding machine

    extruded wall panel production line
