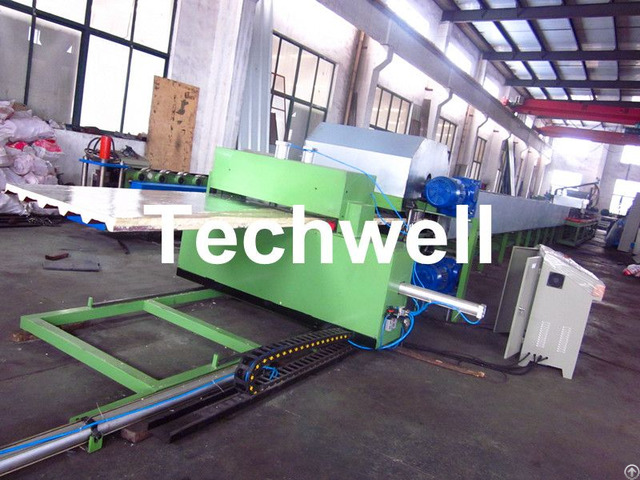

Simple Continuous PU Sandwich Panel Making Machine

Product Details:

Brand Name: TECHWELL

Certification: CE

Model No: TW-PU1000

Packing: Standard packing

Product Description：

1)(a) Thickness : roof steel panel 30-200mm and wall steel panel 30-200mm.

(b) PU foam density : 40±5 kg/m³ ( or depend on requrement )

(c) Panel width : 1000mm ( or denpen on customer's requirement )

(d) Thickness of galvanizes color steel coil : 0.4mm~0.75mm

2)The production speed is different according to the panel thickness.

3)Speed of forming machine is 0~12m/min and adjustable.

The length and amount of production can be set and count automatically by control panel.

4)Hydraulic material discharge stand can feed steel sheets automatically and keep accuracy during long time operation.

5)Bend saw cutter : Maximum thickness is 200mm.

The suction channel is reserved for additional suction system to prevent the dust pollution.

6)The characteristic of this continuous rubber belt sandwich line is ALL parts including forming machine, lamination, conveyor, cutter and auto stacking equipment are synchronized by a central Ratio Setter control system.

The user can easily control the speed through the main speed controller (VR).
