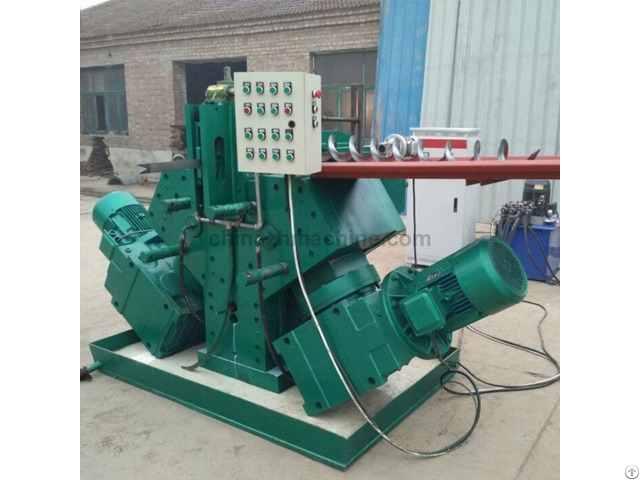

Spiral Blade Cold Rolling Mill Continuous - China

Spiral Blade Cold Rolling Mill (Continuous) spiral blade processing machine pet water bottle production line Screw Flight Forming Machine

We have different models of forming machines for different dimensions of screw flight with different processing.

Could you please provide me the spec.

list of screw flight you hope to produce, We will advise the right machine model number accordingly soon.

1 - Continuous cold rolled helical blade: Thickness: 2-8mm, maximum strip width of 150mm.

The machines: GX130-6M (2-6mm), GX150-8L (2-8mm).

2 - Continuous helical blades and other thick: Thickness: 2-20mm, the maximum width of 80mm.

The machines: GX30-5S (2-5mm), a maximum width of 40mm;

GX80-20S (6-20mm), maximum width of 80mm.

3 - Sectional Screw flight with big thickness, big diameter, big pitch.

Any size, mold production.

Material: low-carbon steel.

Manganese steel, stainless steel, wear-resistant steel to meet the customers' different industrial needs.

Product Description

Spiral blades are widely used in many industries and mechanical equipment.

This spiral surface type has the functions of stirring and mixing materials during the completion of the conveying operation.

This new type of continuous spiral blade cold rolling mill solves the problems of low production efficiency and serious material waste of old models.

This equipment can produce continuous elongated spiral blades, and the pitch and blade size can be flexibly adjusted according to customer requirements.

It is very suitable for professional spiral blade processing enterprises or personal machining.

Features

Wide application and high production efficiency

Save material

Capable of producing continuous elongated spiral blades

The pitch and blade size can be flexibly adjusted

It is very suitable for professional spiral blade processing enterprises or personal machining.

Parameter

Type: Continuous

Power: 11KW Spiral Blade Forming Equipment Working Process:

1) Move the sliding seat to the maximum open state on the far right.

2) Choose different types of side plates according to the pitch of the spiral blades.

3) After adjusting the installation position of the side plate, fasten it on the left and right installation frame.

4) Adjust the minimum compression distance between the two intermediate plates according to the thickness of the spiral blade.

5) Set the maximum return distance of the sliding seat after each compression.
