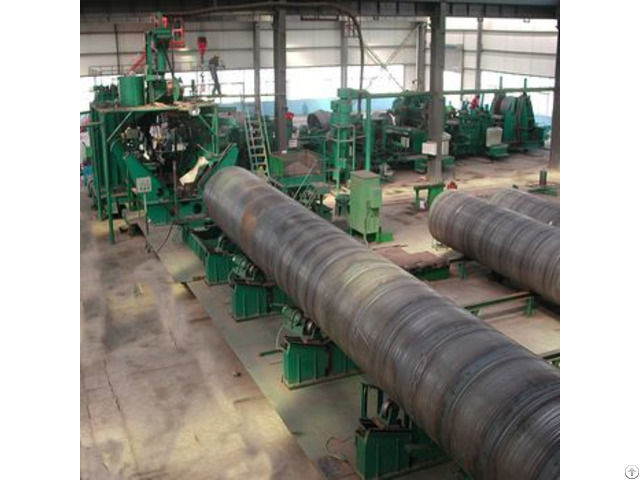

Ssaw Pipe Mill In China - China

GEIT Pipe welding equipment factory is located at Hebei, China, it has a combined capacity of 0.6 MTPA of Spiral submerged arc welded (SSAW) and longitudinal submerged arc welded (LSAW) steel pipes along with internal and external coating facilities of up to 2mn square meters annually.

State of the art technology and the latest testing equipment ensure adherence to international standards.

Automated systems and processes help in real time tracking of pipes until dispatches.

Minimal human interference ensures a high degree of precision and consistency.

High production to manpower ratio due to automation of processes.

1 - Major applications: Spiral welded steel pipes are widely used in Oil, Natural Gas, Water and other flammable & nonflammable liquid conveyance and distribution pipelines, steel structures for construction and other general purposes by means of their wide size range.

2 - Process flow

Feeding→uncoiling→ leveling→shearing&b utt welding→rotary shear→edge milling→main drive→pre-bend&guid e board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydro testing→collection

3 - Specifications

1 - LH-500: Pipe Sizes(mm)Φ219 to Φ529, Plate Width(mm)400 to 800, Thickness(mm)5 to 11 Coil, Weight (MT)15, Installed Capacity (KW)200, Floor Area (m2)18 * 180

2 - LH- 600: Pipe Sizes(mm)Φ219 to Φ630, Plate Width(mm)450 to 1050, Thickness(mm)6 to 12.7 Coil, Weight (MT)20, Installed Capacity (KW)240, Floor Area (m2)21 * 180

3 - LH- 800 : Pipe Sizes(mm)Φ219 to Φ820, Plate Width(mm)500 to 1300, Thickness(mm)6 to 18 Coil, Weight (MT)30, Installed Capacity (KW)380, Floor Area (m2)24 * 180

4 - LH- 1800: Pipe Sizes(mm)Φ508 to Φ1820, Plate Width(mm)1100 to 1600, Thickness(mm)8 to 25.4 Coil Weight (MT)40, Installed Capacity (KW)510, Floor Area (m2)30 * 180

Company Contact:

• Posted By: GEIT GROUP CO.,LTD

• Phone: +86-18330116125

• Address: Room711,Culture building, Beijing Road, Yunhe District, Cangzhou City, Hebei,China, Cangzhou , China

• Email:

• Website: http://www.geit-group.com

• Business Description: GEIT Group is a highly recognized fabrication of Color coating equipment company that has been committed to quality and service since 1992 - It is specialized in design, manufacture and install of Color coating line of steel coil, Color coating line of aluminium coil, etc.
