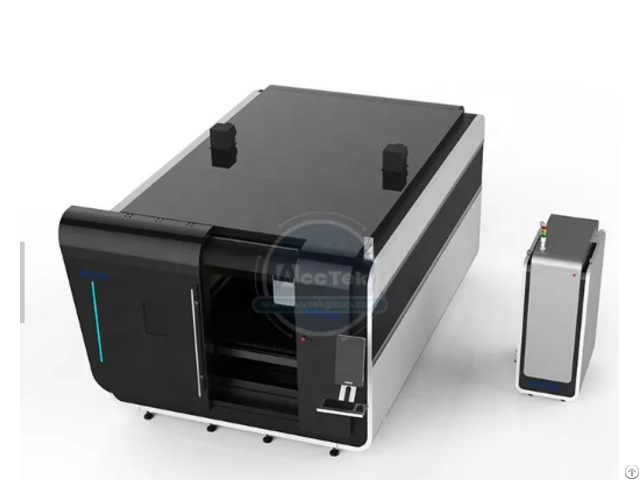

Steel Iron Metal Cnc Fiber Laser Cutting Machine With Ipg And Raycus - China
price: 34600.00 Dollar US$
Working area
1500*3000mm
Control System
Cypcut controller with wireless hand-wheel
Laser head
Raytools brand
Guide rail
Taiwan HIWIN linear guide rail 30mm
Transmission
Rack and pinion transmission
Electronic Components
French Schneider
Max Cutting Speed
35m/min
Motor
X, Y axis Japanese Yaskawa servo motor850W, Z axis Yaskawa 400W servo motor
X axis max speed
65m/min
Y axis max speed
70m/min
Z axis max speed
30m/min
X Y axis max acceleration
1G
Cooling Way
Water Cooling
Min line width
0.1mm
Power Requirements
380V, 50/60hz, 3 phases
Continuous Working Time
24Hours
Dust-collect Function
Yes
Work Holding
Vacuum with t slot
Tool Magazine
8-slot Tool Magazine with 8 ISO 30 tools
Net Weight
6300KG
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China
- Email:
- Website: https://www.acctekgroup.com/
Published date: December 6, 2022
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
