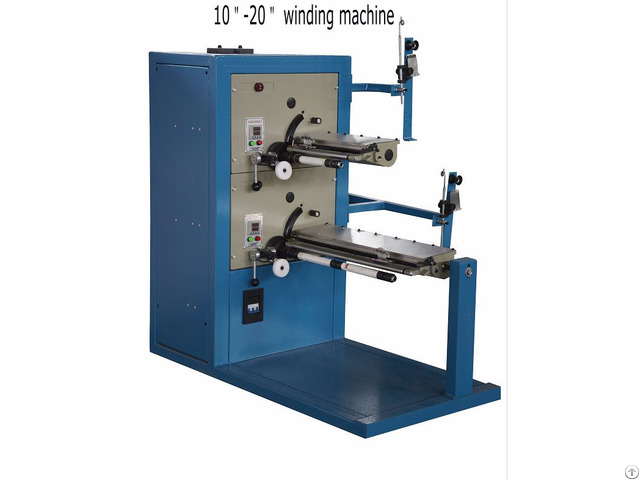

String Wound Filter Cartridge Making Machine - China

PP string wound filter cartridge making machine (PP winding filter cartridge making machine / PP yarn filter cartridge machine ) is a dedicated machine for winding of different yarns, threads on filter cores.

Characterized by high speed, good thread sharp, automatic stop at yarn’s fullness, quick to replace yarn and low energy consumption .

Parameters of String Wound Machine

Types: Single Spindle & Double Spindle

Winding Speed : 60-320m/min

Power of Motor: 0.18 KW/spindle (10”), 0.25 KW/spindle (20”), 0.37KW/spindle (30”)

Speed of Motor: If filter cartridge’s length <30’’, motor speed of three-phase asynchronous: 2800 r/min ; If filter cartridge’s length >30’’, motor speed of three-phase torque : 1400 r/min

Raw Material : PP yarn, cotton, etc.

Material of Core: pp / stainless steel ( as your requests)

Filter Precision: 1micron, 5micron, 10micron, 20micron, 30micron, …100micron

Inner Diameter of Filter : 28mm, 30mm (customized)

Outer Diameter of Filter : 29mm-200mm (customized)

Length of Filter : 5’’, 10’’, 20’’, 30’’, 40’’, 50’’ …100’’

Warranty: 1 year

Voltage (default)

three phase 380V/50HZ, single phase 220V/50HZ (customized)

Install

Our engineer will teach you how to install and operate the machine in our factory .

Certificates:

ISO 9001: 2008 & CE

Payment Terms:

30% T/T prepaid as deposit, the balance against Copy of B/L

Delivery Time

We will delivery the goods in 20-25 working days after receipt of your deposit.

Packing Details

plastic film wrapped and wooden case packed

Company Contact:

• Posted By: Wuxi Hongteng Plastic Machinery Factory

• Phone: 18251549636

• Address: No 34 Hongxiang Road, Hongshan Industrial Park, Wuxi , Jiangsu , China

• Email:

• Website: http://www.ht-wx.com

• Business Description: Wuxi Hongteng Plastic Machinery Factory was established in 1989, located in Wuxi City of Jiangsu Province.

  We are a filter cartridge making machines manufacturer, specialized in R&D, producing and selling PP melt blown filter cartridge making machine, string wound filter cartridge making machine and activated carbon filter cartridge making machine , etc.

  Our products have been exported to more than 35 countries & religions , well received by our customers !
