Trapezoidal Roof Panel Roll Forming Machine - China

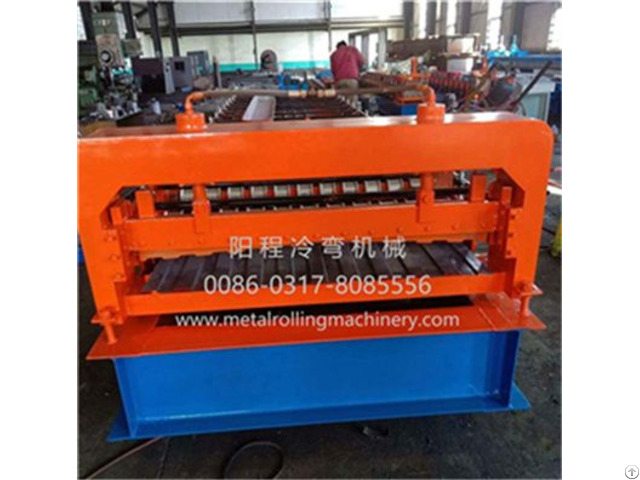

Trapezoidal Roof Panel Roll Forming Machine

Roof Panel Roll Forming Machine

We also design the Panel Roll Forming Machine as per your required profile drawing

SURFACE TREATMENT

1) Processing material: aluminium/zinc/galvanized steel/colored steel coil

2) Material thickness: 0.3-0.7mm

3) Effective width: 1000mm

4) Feeding width: 1200mm

5) Main motor power: 4kw

6) Pump power: 4kw

7) Roller Stations: 14 stands

8) Productivity: 0-14m/min

9) Roller material: high grade NO.

45 forged steel, with hard chrome plating

10) Shaft material: high grade NO.

45 carbon wrought steel

11) Cutter material: Cr12 mould steel with quenched treatment

12) Shaft diameter: 70mm

13) Main frame: 350H Steel

14) Medium plate thickness: 16mm

15) Control system: PLC computer control with inveter

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

Roof panel forming machine TECHNOLOGY

Manual decoiler→feeding device→main roll forming machine→cutting system→output table, 5.5kw electric-motor, hydraulic station with 4kw electric motor, PLC control system

SALES TERMS

1).

Roll forming machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This Cold forming machine is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
