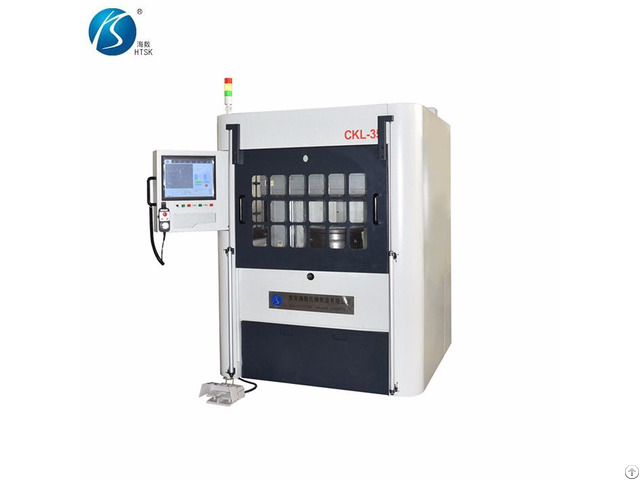

Veitical Wheel Cnc Lathe Ckl 35 - China
price: contact company for price
Technical Parameters
NO.
Item
Unit
Technical Parameters
CKL-35
1
Max.
turning diameter
mm
1000
2
Max.
machining wheel diameter
mm 900(35")
3
Chuck maximum clamping diameter
mm
920
4
Spindle speed
(frequency conversion)
rpm
50-1200
5
Cutting feed rate
mm/min
0.1-1000
6
Turret vertical movement distance
mm
450mm
7
Turret horizontal movement distance
mm
±470
8
X-axis fast moving speed
mm/min
1500
9
Z axis fast moving speed
mm/min
8000
10
Turret form 2 station row turret
11
Tool handle section
mm
25×25
12
Main motor power
kw
5.5
13
Feed motor X: 6Nm Z: 2×6Nm
14
Machine positioning accuracy
mm
0.015
15
Machine repeated positioning accuracy
mm
0.012
16
Machine weight
kg
1500
17
Machine dimensions
mm
2000×1550×2000
Company Contact:
- Posted By: Taian HAISHU machinery
- Phone: 8613583808891
- Address: shankou , taian , shandong , China
- Email:
- Website: http://www.htskcnc.com/english/
Published date: July 7, 2018
- Business Description: Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001 - We have more than 30 professional talented CNC experts and more than 12, 000 square meters manufacturing factory.
More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements.
Our high quality and innovative products include CNC lathe, CNC milling machine, CNC machining center, CNC turn mill machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
As the professional CNC machine designer and manufacturer, HAISHU Machinery is not only manufacturing best quality CNC machine products but also providing custom product design and after sale services.
Welcome contact us for detailed information.
