Vertical Honing Machines - China

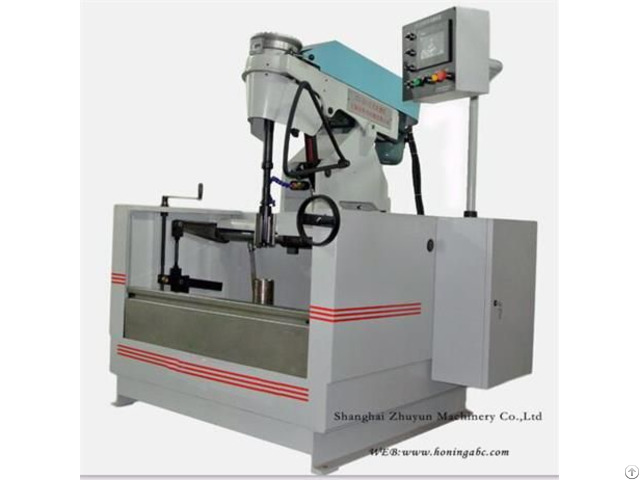

MVR-220 machine tool is designed for large and medium-sized production of large parts: including various automotive engine block trial workshop processing, automotive engine refurbishment maintenance, various automotive cylinder repair and maintenance industries, large diesel engine connecting rod processing, large compressor cylinder Body processing, compressor cylinders for train air conditioning, oilfield components, porous natural gas/diesel cylinders, various cylinder liners, brake drums, large hydraulic components, and other similar applications.

Equipped with a PLC computer to control the color operation screen for easy operation.

Using Delta's

The PLC processor displays the touch screen.

The display shows the torque of the upper, middle and lower three different positions of each hole, from

The consistency of the aperture can be judged.

The stroke servo control ensures that the internal mesh is consistent, the angle of the mesh can be precisely controlled, and short strokes and short pauses can be realized at any position of the hole, and the end of the hole can also achieve high precision honing.

The workbench is extremely simple.

Regardless of the shape of the workpiece, the clamping is very convenient and reliable.

When changing different workpieces, the tooling cost is extremely cheap Model: MVR-220

Honing range: 19-203mm

Workpiece weight: 680Kg (maximum load)

Spindle power: 2.2KW

Spindle speed: 90-350RPM stepless adjustable

Stroke power: 0.75KW

Stroke speed: 40-100 times / min Stepless adjustable

Stroke length: 0-225mm

Processing length: 470mm (maximum hole depth)

Cooling motor: 0.75KW

Power: 380V 50Hz 3 phase

Machine weight: 1150Kg

Fuel tank capacity: 208L

Machine size: L2000*W2000*H2200mm
