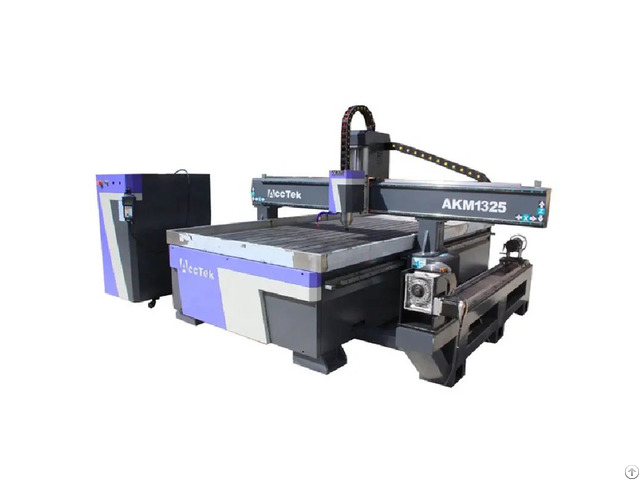

Wood Cnc Router Woodworking Engraving Machine 1325 4 Axis - China
price: 4500.00 Dollar US$
Working Area
1300*2500*200mm
Traveling Positioning Accuracy
±0.03/300mm
Repositioning Accuracy
±0.03mm
Table
T-slot Table
Frame
Welded Structure
X, Y axis
helical rack 1.25M, Hiwin 20# Rail Linear Bearing
Z axis
Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw
Max.
Power Consumption
(Without Spindle) 2.5kw~3Kw
Max.
Rapid Travel Rate
33000mm/min
Max.
Working Speed
25000mm/min
Spindle Power
3.0kw water cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Leadshine easy servo motor
Working Voltage
AC380V/50/60Hz, 3PH (Option: 220V)
Command Language
G Code
Operating System
Mach3 Control System
Computer Interface
USB
Flash Memory
128M(U Disk)
Collet
ER25
X, Y Resolution
<0.01mm
Software Compatibility
Type3/UcancameV9/Artca m Software
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China
- Email:
- Website: https://www.acctekgroup.com/
Published date: April 4, 2023
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
