Stirrup Bender Steel Bar Bending Machine - China

price: 400.00 Dollar US$

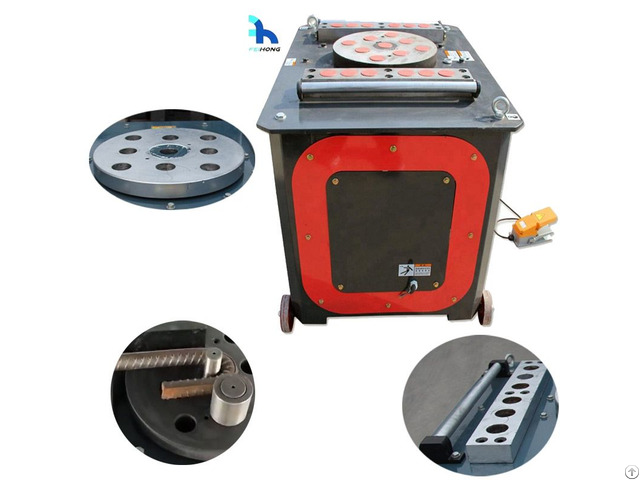

Stirrup Bender Steel Bar Bending Machine

Products Photos Catalog Stirrup Bender Steel Photos Catalog

Advantages of the Mini type bar bender 1 - Worm gear structure 2 - strengthen the worm gear, steel section play worm 3 - forged solid external gear 4 - full solid square steel, disc, surface grinding machine processing 5 - Spindle adopts NJ215 roller bearing 6 - adjustable motor board, tension triangle belt 7 - Automatic type: Set the stop screw and open the T-Shaped groove on the side of the working disc.

The working disc can automatically return to the position when selecting a certain angle to improve the efficiency.

Numerical control type: Use full solid working disc, adopt encoder and PLC numerical control operation panel, use more convenient, more accurate angle.

8 - increase the emergency stop button to prevent improper operation.

Technical Parameter Model FHGW-40 bending ability (round bar)4--40mm (deformed bar)4--32mm Working efficiency 14R/Min(90degree) 10R/Min(135degree) Motor voltage 380V Electric Power 4Kw-4P Machine dimension 910x740x790mm Net weight 340Kg Operation system Manual/Automatic/CNC


Company Contact:


  • Phone: +8615806593599

  • Address: changjiangzhonglu , Qingdao , Shandong , China

  • Email: Email

Published date: December 25, 2018 - Modified date: January 16, 2019

  • Business Description: our main products: CNC Rebar Cage making Machine.

    CNC Rebar Bending Center.

    CNC Stirrup Bender.

    CNC Rebar Cutting Production Line.

    CNC Rebar Sawing & Thread Rolling Production line.

    CNC Wire Straightening&Cutting Machine, steel wire mesh welding machine.
