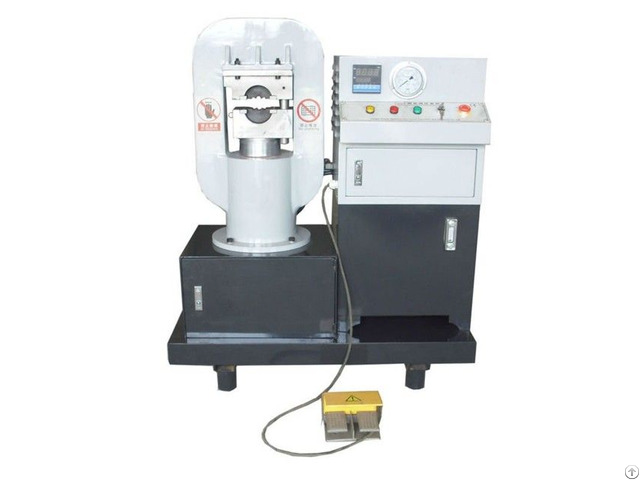

Wire Sling Swaging Machine - China
price: 3.00 Dollar US$
Mode No.
YS-100 YS-200 YS-350T YS-500T YS-650T YS-1000T
Max press power (KN) 1000 2000 3000 5000 6500 10000
Max wire rope diameter in one pressing (mm) Φ13 Φ20 Φ26 Φ32 Φ38 Φ44
Max wire rope diameter in multi-pressing (mm) Φ15 Φ22 Φ34 Φ42 Φ48 Φ56
Power (KW) 1.5 2.2 3.7 4 5.5 11
Max working pressure (Mpa) 56Mpa 56Mpa 56Mpa 56Mpa 56Mpa 56Mpa
Max piston movement (mm) 78 80 80 120 160 200
The up speed of piston (mm/sec) 8 8 4.5 4.5 4.5 4.8
The down speed of piston (mm/sec) 10 10 4.5 8 8 10
Company Contact:
- Posted By: Taixing Hongyuan CNC Machine Tool Co.,Ltd
- Phone: +86-13951157652
- Address: Daiwang Road, East Industrial Park, Taixing , Jiangsu , China
- Email:
Published date: December 5, 2019 - Modified date: January 2, 2020
- Business Description: Taixing Hongyuan Machinery Co., Ltd, located in Taixing, Jiangsu, is the top ranked and experienced machinery manufacturer and supplier in China, whose series of high quality CNC machinery, machine tools, mechanical & electric equipments are widely used in the field of metalworking, shipbuilding, oil industry etc.
Established in 2003, and spread its business to over 30 countries
Our main product :
1 - CNC pipe threading lathe, drill pipe hardbanding machine, drill pipe repair machine, CNC spiral groove milling machine etc, this series machineries are mainly used in petroleum, gas industry for manufacturing and processing hardbanding, thread products, on oil tubing, casing, drill pipe, drill collar, tool joint, and coupling etc.
2 - CNC gas/plasma cutting machine， Wire rope swaging machine
3 - High velocity relief valve (pressure/vacuum valve) for oil tanker and chemical tanker
With over 10 years of combined knowledge and expertise, our team is staffed with skilled people that our customers can count on, provide innovative and cost effective solutions to customer needs.
