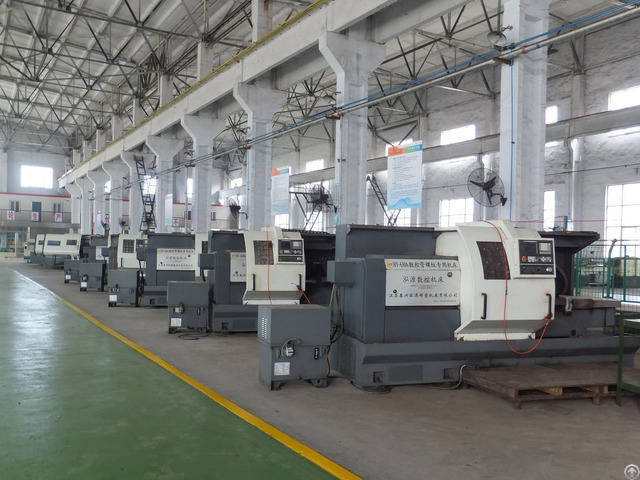

Cnc Pipe Coupling Threading Machine - China

This series machine is flat bed machine, the guide surface is assembled by flat guide rail and triangle guide rail, then the contact surface is widened and thickened.

Machine bed is made by high strength cast iron, it is through precision grinding after supersonic frequency quenching.

It is the ideal equipment for normal thread machining of pipe coupling.

Items Unit HYSK-6150 HYSK-630A HYSK-338A

Max.

swing diameter over bed ㎜ φ500 φ630 φ880

Chuck diameter ㎜ φ400 φ458 φ508

Max.

machining length ㎜ 500 650 800

Max.

swing diameter over saddle ㎜ φ260 φ400 φ480

Spindle bore diameter ㎜ φ70 φ100 φ190

Range of spindle speed r/min 25～1200 25～750 25～450

Range of machining diameter in 2 3/8～ 5 1/2 2 3/8 ～ 9 5/8 7～20

Main motor power kW 7.5 11 22

X-axis travel ㎜ 260 350 450

Z-axix travel ㎜ 600 750 900

Rapid movement speed(X/Z) m/min 8/10 8/10 8/10

Tool rest station NO.

4+1 4+1 4+1

Spindle center hight mm 1135 1150 1150

Roughness mm Ra1.6 Ra1.6 Ra1.6

Machine weight(NW) kg 2600 5200 8800

Machine dimension(L×W×H) mm 2920*1550*1620 4160*2000*1700 4500*2200*2000
