Diamond Pdc Reaming Shell - China

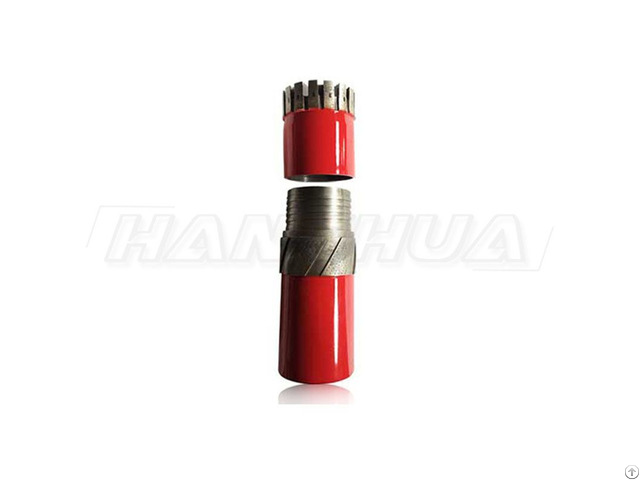

Diamond + PDC Reaming Shell Reamed shells are available for all types of core barrels and drill bits.

The product description

Reamed shells are available for all types of core barrels and drill bits.

The design is the result of years of experience.

Reamed shells improve core recovery and quality by reducing vibration and stabilizing coring.

The longer service life ensures that the aperture remains the same, preventing the new bit from getting stuck in the narrow hole.

The wash channel has been optimized to keep the diamond cool enough without limiting flow, thus ensuring the lowest circulating pressure.

We are an Diamond Core Bits Exporter.

FEATURES&BENEFITS

* Maintains hole diameter longer to prevent new bits from sticking

* Improves core quality due to a stabilized core barrel.

* Unique design and diamond setting for long service life

* Flushing channels designed to ensure low circulation pressure STANDARD SPECIFICATION

ITEM DIAMOND BIT REAMING SHELL

"Q"

Series

Wireline Size Bit-set OD Bit-set ID mm inch mm inch mm inch AQ 47.60 1.88 26.97 1.06 48.00 1.89 BQ 59.50 2.35 36.40 1.43 59.90 2.36 NQ 75.30 2.97 47.60 1.88 75.70 2.98 HQ 95.58 3.77 63.50 2.50 96.00 3.78 PQ 122.00 4.80 84.96 3.35 122.60 4.83

Swedish

Metric

T2

Series 36 36.0 1.417 22.0 0.866 36.3 1.429 46 46.0 1.811 32.0 1.260 46.3 1.823 56 56.0 2.205 42.0 1.654 56.3 2.217 66 66.0 2.598 52.0 2.047 66.3 2.610 76 76.0 2.992 62.0 2.441 76.3 3.004 86 86.0 3.386 72.0 2.835 86.3 3.398 101 101.0 3.976 84.0 3.307 101.3 3.988

Swedish

T

Series TAW 47.6 1.875 23.2 1.31 48.0 1.89 TBW 59.5 2.345 44.9 1.77 59.9 2.36 TNW 75.3 2.965 60.5 2.38 75.7 2.98
