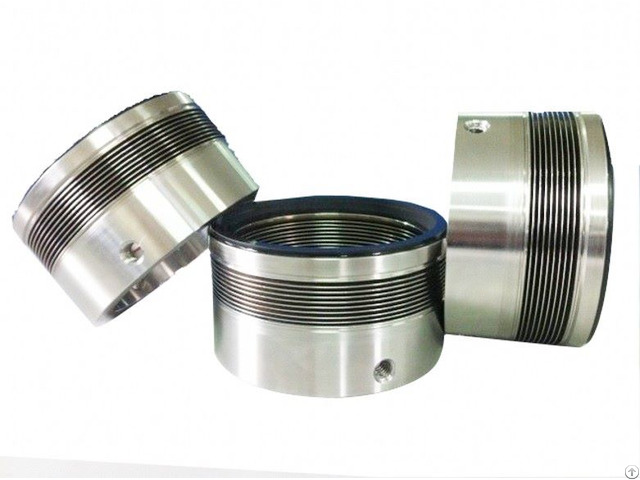

Ytb132 Tandem Rubber Or Metal Bellows Mechanical Seal For Compressor Pump Blower - China
price: contact company for price
Characteristics
Type: bellows mechanical seal
Pressure: -0.1~2.5MPa
Temperature: -75~400℃
Linear speed: less than 30m/s
Size: 25~105mm
Medium: high viscosity media, major solid particles allowed.
Corrosive media (strong base and salt, etc.
) are available when it reaches 150℃.
Material: stainless steel, carbon, metal, graphite
Product application: for chemical industry/ pumps
Design structure:
Single face and bellows structure
The structure is simple, the load of the end face is uniform, and the rotation direction is not limited
Bellows is a stationary part, and the fixed position of the bellows can be floated to ensure that the surface of the bellows is matched with the rotating end face
Auxiliary seal ring is a flexible graphite gasket or PTFE pad.
Good wear-resistance for the friction pair
Competitiveness:
High-performance, competitive price, prompt delivery and best service
Longer service life and low energy consumption
Can be customized according to customer’s requirement
More than 20 years' designing and manufacturing experience
More than 20 years’ vendor of Sinopec and PetroChina
Get the ISO9001, ISO14000 and ISO18000 certificate
Awarded a number of utility patents in researching and designing seals
