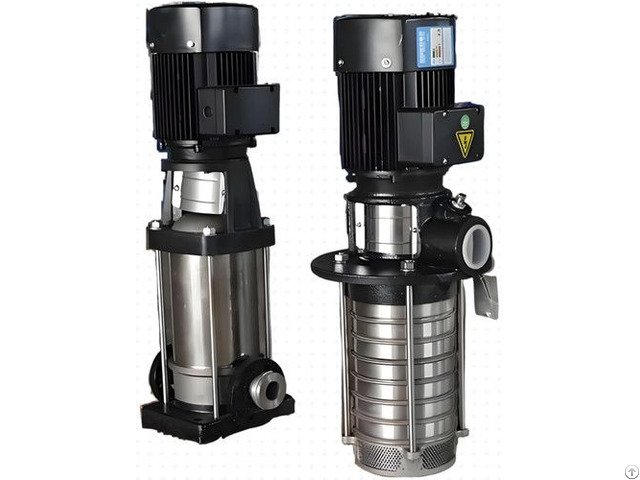

Cdlkf Stainless Steel Submersible Multistage Centrifugal Pump - China

CDLK, CDLKF Stainless steel immersible multistage centrifugal pump

stainless steel immersed multistage centrifugal pump is developed and manufactured with international advanced technology, which has the advantages of small volume, light weight, high efficiency, small vibration, low noise, stable operation, corrosion resistance, convenient installation, etc., and saves the space required for installation.

Structure

CDLK, CDLKF pump is a down suction and up discharge multistage centrifugal pump with standard motor installed.

The motor shaft is directly connected with the pump shaft through the coupling of pump head.

The pump can be equipped with intelligent protector according to the needs to effectively protect the dry running, phase loss, overload, etc.

of the pump.

In order to meet the installation depth of the water tank or container, the cavity body can be installed to change the length of the pump itself.

See the size and weight table for the length of different stages.

Operation conditions

The product is suitable for low viscosity, neutral, non explosive liquid without solid particles or fibers, and the delivered liquid can not be chemically corrosive to the pump material.

(when ordering oil or oil-based liquid, it is necessary to inform, and increase the motor power in model selection)

Normal temperature type: -15 to 70 degree celsius.

hot water type : 70 to 120degree celsius.

Flow range: 1-70m3 / h

Maximum pressure: 24bar

PH range of medium: ph3-9

Motor:

The motor is totally enclosed, Grundfos type aluminum shell, air-cooled two-stage standard motor.

Protection grade: IP55, IP56

Insulation class: Class F

Standard electricity: 50HZ

1×220－230/240V 3×200－230/346－400V

3×200/346V 3×220－255/380－440V

60HZ:

3×220－240/380－415 V 3×220－277/380－480V

3×220－225/380－440 V

Application:

This series of pumps are used for conveying machine tool coolant, lubricating liquid, condensate, industrial cleaning equipment and other occasions suitable for immersion pump, suitable for different temperature, flow and pressure range, CDLK pump is suitable for non corrosive liquid, CDLKF pump is suitable for light corrosive liquid.

It is used in EDM, chip conveyor, grinder, machining center, cooling device, industrial cleaning equipment, filtration system, etc.
