Dc Solar Helical Rotor Pumps - China
price: 300.00 Dollar US$

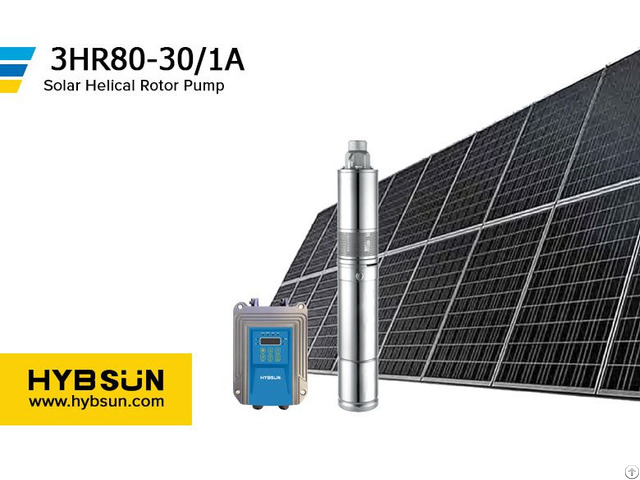

DC Solar Helical Rotor Pump
3 inch 3HR Solar Helical rotor pump
3" Permanent magnet brushless DC Solar water Pump
DC24V, DC48V, DC72V Solar pumping system
Power range: 80 - 1300w
Head range: 30 - 180m
Flow range: 1 - 2.3 m3/h
Pump Outlet: 3/4"
Requiring the quantity of solar panel from 1 - 6 pieces
Poly / Mono 250/300 watt solar panel
Specification
Application
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, Which enables the efficient use of energy from a wide range of supply options.
The pump system offers the perfect water supply solution.
This project products are mainly used in dry irrigation of agriculture.
It can be used for drinking water and living water.
The living condition could be much improved.
Characteristic
1 - Permanent magnet, brushless motor, saving energy and offering maximum efficiency.
2 - NSK bearing with alloy mechanical seal, offering the longer working life.
3 - MPPT function offers higher utilization rate of solar energy.
4 - Water proof and leak proof based on double water seal.
5 - Controller maximum's operating temperature: 60℃
6 - Featured function: MPPT function, Soft start function, Dry running protection, Adjustable speed function, Error wiring protection, Over/under-voltage protection, Overload protection, Over-current protection, phase-loss protection, High working temperature protection
Working conditions
1 - Power Supply: 1 - Solar panel | 2 - Storage batteries.
DC24 Solar pumps: 21-50V (VMP)
DC48 Solar pumps: 42-100V (VMP)
DC72 Solar pumps: 63-150V (VMP)
DC96V Solar pumps: 84-200V (VMP)
2 - Water temperature: ≤35℃
3 - PH value 6.5 ~ 8.0
4 - Maximum immersion depth: 50 Meter
Technical Data
Model
Volatge
(V) Power
(W) Vmp
(V) Max.
Flow
(m3/h) Max.
Head
(m) Outlet
(Inch)
3HR80-30/1A
DC24 80 21-50 1.0 30 0.75"
3HR140-50/1.3A
DC24 140 21-50 1.3 50 0.75"
3HR210-80/1.8A
DC24 210 21-50 1.8 80 0.75"
3HR300-100/1.8B
DC48 300 42-100 1.8 100 0.75"
3HR500-120/1.8B
DC48 500 42-100 1.8 120 0.75"
3HR750-140/2.3B
DC48 750 42-100 2.3 140 0.75"
3HR1000-160/2.3C
DC72 1000 63-150 2.3 160 0.75"
3HR1200C-180/2.3C
DC72 1200 63-150 2.3 180 0.75"
