Cdlkf Stainless Steel Submerged Multistage Pump - China

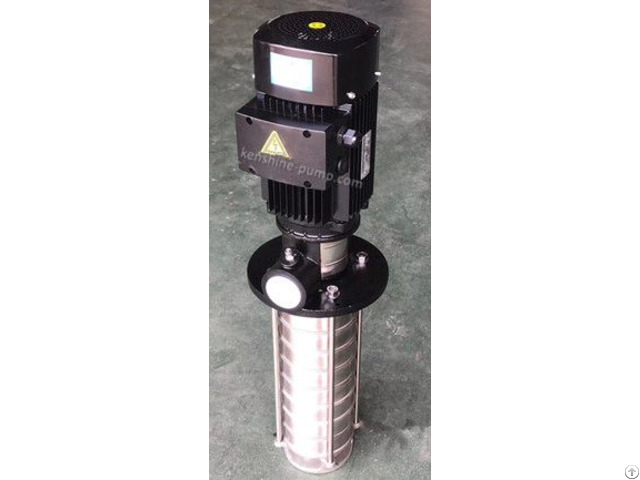

CDLKF is a self-priming vertical multi-stage centrifugal submerged pump is equipped with standard motor.

The motor shaft is directly connected to the pump shaft through the coupling of the pump head.

The pump can be equipped with intelligent protector according to the needs to effectively protect the dry rotation, phase loss and overload of the pump.

In order to meet the installation depth of the tank or container, the cavity can be installed to change the length of the pump itself.

Application CDLKF is used as the conveying machine of cooling fluid, lubricating fluid, condensed water conveying, industrial cleaning equipment and other occasions.

CDLKF pump is for immersion submerged pump with different temperature, flow and pressure range.

CDLK pump is suitable for non-corrosive liquid and CDLKF is suitable for mildly corrosive liquid.

CDLK, CDLKF pump is used for electric spark, lathe, grinder, machining center, cooling device, industrial cleaning equipment, filtration system, etc.

The motor: The motor is a fully enclosed, air-cooled bipolar standard motor.

Protection grade: IP55 Insulation grade: F Standard voltage: 50HZ: Single phase, 220-230/240v 3 Phase/200/346 v 3 phase/220-240/380-415v 3 Phase/220-225/380-440V Motors of other voltages are available upon request.

Single phase voltage from 0.37-2.2kw available.

Operating conditions A thin, clean, non-explosive liquid, without solids and fibers, capable of conveying water and cooling water solutions and cutting lubricants.

Liquid temperature: normal temperature type -15℃~+70℃ hot water type +70℃~+120℃

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
