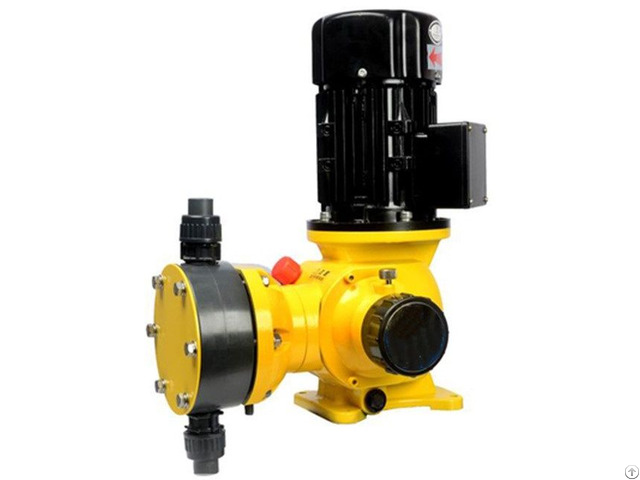

GM mechanical diaphragm metering pump dosing pump

Product introduction

Flow range : 0-500L/H

Pressure range: 0-1.2MPa

Motor power: 220V / 380V / 110V / 50/60Hz

Drive system: two-phase, three-phase standard motor or explosion-proof motor

Protection grade: IP55, IP54, material

Pump head: SUS304, SUS316, PVC, PTFE

PTFE diaphragm:

Check valve: SUS304, SUS316, PVC, PTFE

Valve ball: ZRO2, SUS304, SUS316, ceramic The working conditions

Ambient temperature: -30℃ to 80 ℃

The characteristics of

1 - Safe operation, mechanical drive diaphragm.

2 - Good sealing, no leakage, simple and safe assembly and maintenance.

3 - It can transport high viscosity media, corrosive liquids and dangerous chemicals.

4 - Flow regulation can adjust stroke length or motor frequency.

5 - The diaphragm is made of multi-layer composite structure, the first layer is super toughness Teflon acid resistant film, the second layer is EPDM elastic rubber, the third layer is 3.0mmSUS304 supporting iron core, the fourth layer is reinforced nylon fiber, the fifth layer is fully covered with EPDM elastic rubber, which can effectively raise the service life of the diaphragm.

application

Widely used in petrochemical, chemical, electric power, metallurgy, mining, shipbuilding, light industry, agriculture, national defense and other industries.
