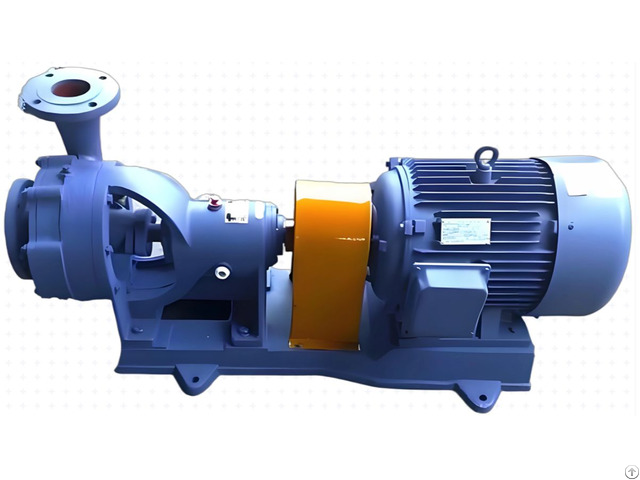

Gn Centrifugal Condensate Water Pump At 80 To 120 Degree Celsius - China

Centrifugal Condensate water pump is a special type of centrifugal pump designed for transporting high-temperature condensate water (such as turbine condensate water); The core difference between the two lies in their adaptability to working conditions, structural materials, and sealing design, rather than their working principles.

Different uses: Ordinary centrifugal pumps are used for general liquids (water, oil, chemical media, etc.

); Condensed centrifugal water pumps are specialized for high-temperature (usually 80-120 ℃), clean, low-pressure condensed water or saturated water, commonly used in power plants and heating systems.

Structural strengthening: Condenser pumps are often made of heat-resistant materials (such as cast steel and stainless steel), and the design of the suction chamber is optimized (such as raising the suction port and installing a suction valve) to enhance their anti cavitation ability; The structure of ordinary centrifugal pumps is more universal, and the material depends on the medium (such as cast iron, carbon steel).

Sealing and bearings: Condenser pumps are often equipped with packing seals or mechanical seals+cooling water flushing to cope with high temperature and low cavitation allowance conditions; There are various sealing forms for ordinary centrifugal pumps, but high temperature/low NPSH optimization is not necessary.

Installation requirements: The condenser pump has higher requirements for shaft alignment accuracy (≤ 0.1mm) and pipeline support, as it is often directly connected to the turbine and sensitive to vibration; The installation standards for ordinary centrifugal pumps are relatively loose.

Classification: Condensed centrifugal water pumps belong to the subcategory of centrifugal pumps, which can be single-stage or multi-stage according to the number of impeller stages.

However, "condensing pumps" do not constitute an independent working principle classification - all condensing pumps are based on centrifugal force infusion.

In short, the condensate centrifugal water pump=centrifugal pump+high-temperature condensate water working condition special optimization, not a pump type parallel to the centrifugal pump.

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
