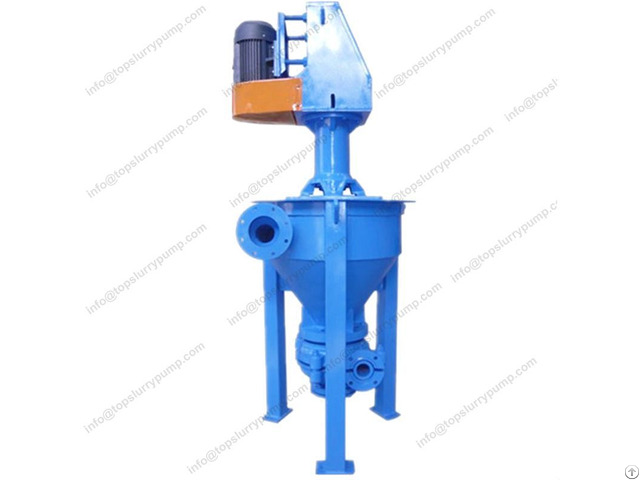

Hedun Vertical Froth Pumps - China

The pump head use double shell structure, the flow-parts use hard nickel, high chromium or rubber material, and its driving section is universal with SP(R) type pump.

Hopper charging box use steel plate structure, liner plate can be covered if the conveying media required, and the pump outlet opening position can be interval changed by 45°.

This series of froth pump can effectively eliminate the foams and bubbles out of the slurry during the operation.

Even the feed-in material is not enough, the pump can still work normally.

odel Power P(KW) Capacity Q(m³/h) HeadH(m) Speed n(r/min) Eff.

% Inlet dia.

(mm) Outlet dia.

(mm)

HDF2Q 3-15 6-43 6-30 800-1800 45 100 50

HDF3Q 3-18.5 23-78 5-28 700-1500 55 150 75

HDF4R 5.5-37 33-187 5-28 500-1050 55 150 100

HDF6S 15-75 80-393 5-25 250-680 55 200 150

HDF8S 37-110 126-575 5-26 350-650 55 250 200 Application

Specially for delivering the frothy slurry of abrasion in flotation process in mines, metallurgy, chemical process, coal industries, etc The Vertical Froth pump is suitable for: The Vertical Froth Pump is ideal for all applications involving handling of air entrained slurry, such as flotation froth in base metal concentrators, phosphate and apatite washing plants and calcium carbonate upgrading plants The pump can be used as a mixing and distribution unit, where dry powder has to be mixed (and wetted) with water.

Application field: Iron Ore Dressing Plant Copper Concentration Plant Gold Mine Concentration Plant Molybdenum Concentration Plant Potash Fertilizer Plant Mineral Processing Plants
