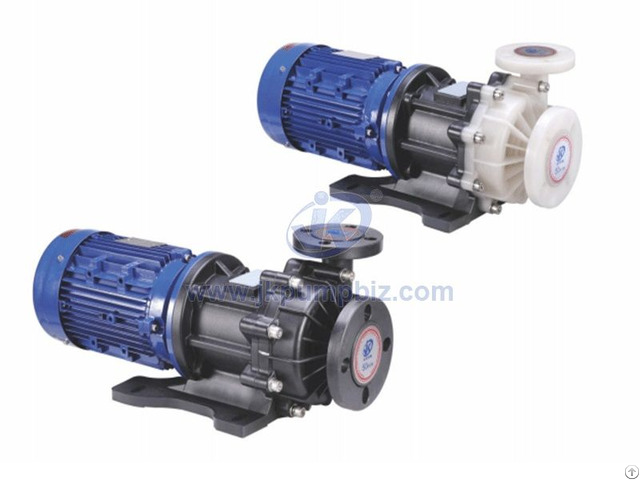

High Flow Magnetic Drive Pump - China

High flow magnetic drive pump

1 MODEL MPH/JMH

2 MATERIAL F - FRPP P- PVDF E- ETFE A- PFA C- CFRPP

3 IN/OUTLET 44-40*40 45-40*50 56-65*50 66-65*65

4 POWER 0-½HP(0.37KW), 1-1HP(0.75KW), 2-2HP(1.5KW), 3-3HP(2.2KW), 5-5HP(3.75KW)

5 SPINDLE C- CERAMIC S- SIC

6 BEARING C-CARBON S-SIC

7 O-ring N- NBR E- EPDM V- VITON

8 FERQUENCY 5 -50HZ 6 -60HZ

What are the magnetic drive pump advatages: JMK/MPH series;

1 - Outstanding Acid /Alkaline resisting capability:

Excellent corrosion resistance thermoplastic materials of pump body has 5 kinds, including FRPP, CFRPP, PVDF.

ETFE, PFA;

FRPP/CFRPP material can resist temperature up to 75℃, PVDF/ETFE/PFA material can resist temperature up to 90℃;

2 - Due to the unique impeller bearing housing design, even the pump dry-running, the temperature inside pump head won’t easily increase to prevent pump for damaged &jam;

3 - Corrosion resisting: seal-less and leaked proof design to ensure the safe transfer of chemicals;

The parts of the pump spindle can be made from ceramic and SIC;

The ceramic spindle is generally applied for low corrosion liquid;

The SIC spindle is excellent for high corrosion liquid;

4 - One piece injection without welding “No leak, Durable and High Efficiency”;

The pump body is seal completely to prevent liquid leakage and hence preventing pollution or corrosion problems caused by many traditional mechanical seal pump.

Besides that, the pump's impeller and magnetic parts integrate well to avoid damage during high-speed rotation and high temperature.

The integrated impeller and inner magnet also reduce the assembly risk and therefore increase the efficiency of the pump; 5 - Impeller and magnet capsule, although the pump dry-running, the temperature cannot be get higher quickly to avoid pump be damaged seriously;

6 - The motor is equipped with temperature protection which avoids motor damaged due to high temperature caused by overload;

The motor shaft is designed and inside from intermally;

We have different motor brands of choice to your needs, for example “QUCHI, TECO” ;

7 - Easy to assembly and maintenance: Most of the pump's parts are moulded design for easy to assemble and maintain;

8 - One piece injection frame : High corrosion-resistant, material made from FRPP/PVDF;

9 - The high flow magnetic drive pump- JMH series are highly recommended for use in various production processes, such as filtering, PCB, spraying, washing, plating, chemical transfer / blending, and etching in surface treatment applications;

10 - Can be used with chemical filter housing；

JKPUMPS established in year 2006, A professional manufacturer and exporter that is concerned with the design, development and production.

Our products main strength in PCB manufacturing as well as electroplating QFN lead frame (Etching & Plating), Aluminium Anodized, Chemical Transferring, Water Treatment, Coating and Anodizing and etc.

Our products are magnetic drive pump, vertical pump, self priming pump, centrifugal pump, diaphragm pump, chemical filter, electroplating rectifier & etc.

JKPUMPS continues today as the leading distributor of full range of wet process chemical pumps, filters and rectifier.

We look forward to being a part of your future pumping needs when looking for a trustworthy supplier.
