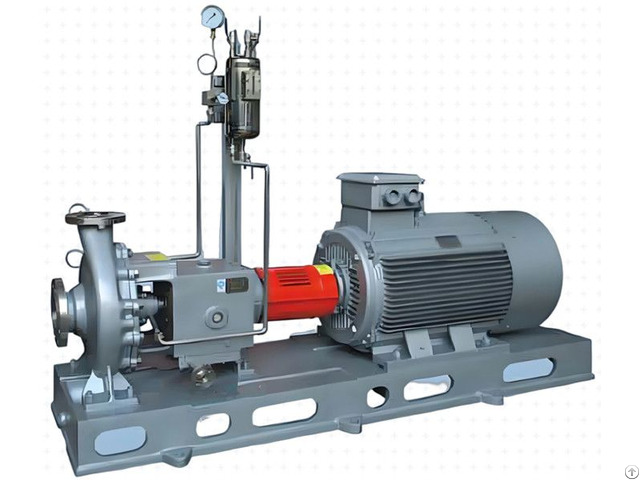

Ij Centrifugal Chemical Process Pump - China

IJ series chemical process pump absorbs techniques in

API610 the 10"' edition and ASME B73 - l-2001 standard, and is a successful upgrade and innovation based on IH pump (a Chinese standard chemical process pump series).

IJ series chemical process pump is a centrifugal pump of horizontal, single stage, single suction, cantilever design, its performance parameters conform to GB/T5662 standard (corresponding to 1SO2858).

Adopting advanced hydraulic design, the pump possesses higher hydraulic efficiency, heightening by 5% in comparison with IH pump, and thus it is an energy-saving product.

In the design of structure, by referring to American ANSI standard, the shaft diameter is increased and cantilever ratio is shorten to eliminate the shortages that IH pump's shaft breaks frequently, thus operational stability improves, maintenance fee and operational cost decreases.

Through uninterrupted research and improvement on mechanical seal and seal chamber by referring to American API 682 standard, 171 series mechanical seal is developed and applied successfully to the industries of soda, chlorine alkali, salt-making, metallurgy, paper-making and environmental protection as well as other industries where the medium is liable to crystallize or contain solid particles.

Besides 171 series mechanical seal, IJ series chemical process pump can adopt other seal plans recommended by API 610 - Through Over ten years' improvement and models development, the applicable scope of IJ series pump is gradually extended, presently there are over 100 specifications, covering the applications of all the chemical processes under pressure 2 - SMPa and temperature 200°C.

IJ series is one of three main chemical process pump series

extensively applied along with CZ and ZA series in China.

The pump is widely used in chemical industry, petrochemical, paper-making, dyeing, food etc.

Conform to 1502858, GB/T5656, APl682 Standard, Max operating pressure 2 - SMP

Range of Capacity (0.64-2400)m3/

Total head (4-250)m

Range of operating Temperature( -20-200)'C

Material: For wetted parts in contact with medium, the common materials are as follows: 304, 321, 316L, 310Cu, 0Cr25Ni6 (duplex stainless steel), alloy 20#, 904, TA2 (titanium, Ti/Pd(titanium-palladium alloy), Ni(nickel), Monel etc.
