Ir Horizontal Single Stage Hot Water Pump - China
price: 890.00 Dollar US$

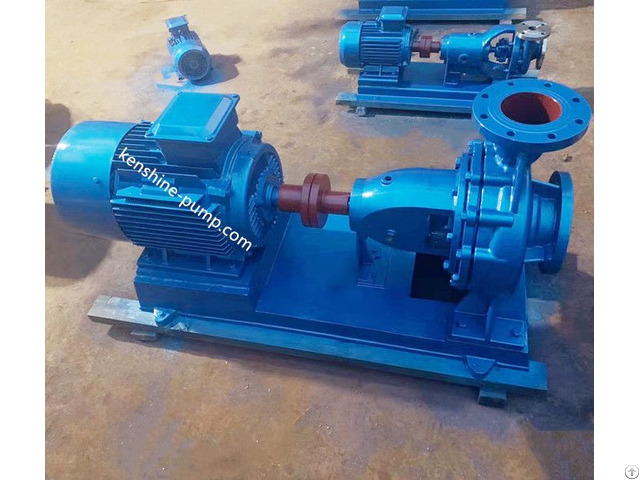

IR Horizontal single stage end suction hot water pump
IR single-stage single suction hot water pump is designed for conveying liquids with viscosity similar to water without solid particles.
The temperature of the conveying medium is 20 to 105 degrees Celsius.
The maximum working pressure of the pump is 1.6mpa, and the inlet pressure is not higher than 0.6mpa
rotary speed : 2900rpm/ 1450rpm, flow rate of 6.3-400m3 /h, head of 5-80m, all series adopt mechanical seal and high-quality soft PTFE gland packing seal.
Its structural form is horizontal suspension, radial part, rear door, center support.
IR pumps are suitable for conveying high temperature clean medium.
IR pumps are connected with motor by shaft coupling.
Bearings are single row centripetal ball bearings lubricated with lubricating oil.
The flow-passage parts are made of gray cast iron.
Application:
Mainly used in metallurgy, chemical industry, power station, heating, light textile, waste heat utilization, heat exchange device, etc.
Company Contact:
- Posted By: Kenshine Pump And Valve MFG Co.,LTD
- Phone: 862133592713
- Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China
- Email:
- Website: http://www.kenshine-pump.com
Published date: November 5, 2021
- Business Description: Manufacturer and sales for various pumps such as centrifugal
pump, industrial pump, chemical pump, submersible pump, self priming
pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc
KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.
KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.
Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.
Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.
The quality of products is insured by PICC.
Company has several sales and service networks in many middle and big cities of China.
The products are sold to domestic cities and exported oversea about 40% products.
