Mechanical Seal For Chemical Pump - China

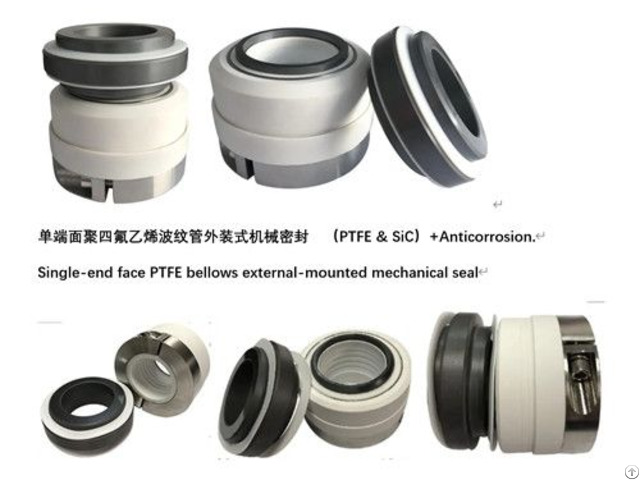

WB2 series silicon carbide mechanical seal ring is a single-end, balanced type with

arbitrary rotation direction and a PTFE bellows.

This series features a PTFE

bellows design, utilizing a multi-spring structure where the springs of the WB2

type are protected by a PTFE cover.

This type of seal is the most widely used in

corrosion-resistant pumps.

The WB2 series silicon carbide mechanical seal rings are categorized into moving

rings and stationary rings, with an operating temperature range of -10°C to

100°C.

The WB2 series silicon carbide mechanical seals exhibit corrosion

resistance, high-temperature resistance, high-pressure resistance, and wear

resistance, and can function under a pressure of 0.5 MPa.

Operating parameters

include: specifications: 30–65 mm, pressure: ≤0.5 MPa, temperature: -10°C to

100°C, linear speed: ≤15 m/s, axial travel: ±0.5 mm.

Material Combination

Sealed end face: silicon carbide, tungsten carbide, alumina, PTFE

Auxiliary sealing: PTFE

Metal components: stainless steel

Mechanical Seal (MS), Model: WB2, Material: Silicon carbide static and dynamic

rings, with auxiliary materials including PTFE and stainless steel.

This seal is an externally mounted mechanical seal that does not require cooling

water, featuring advantages such as simple structure, easy installation, and good

interchangeability.




The seal replaces the static and dynamic rings of the standard WB2 mechanical seal

with silicon carbide material, offering superior wear resistance and enabling the

conveyance of corrosive media containing trace particles.

WB2 Mechanical seals are widely used for chemical pumps such as UHB-ZK / UHB-UF /

UHB-FX / UHB-P / IHF / FSB / FP / FS / FSZ / FZB etc.
