Mission Magnum Centrifugal Pump Parts List - China

our mission magnum centrifugal pump parts list are interchangeable with those (standard) manufactured by mcm®, mission magnum, halco, mattco, harrisburg, national oilwell, mission2500 supreme, spd mud hog, derrick premium 2500, tsc brand.

all spare parts are made of america standard.

our spare parts of centrifugal pump are interchangeable with most of the international brand including mcm, nov, mission, halco, mattco, harrisburg, spd mud hog, which helps customer to source spare parts easily.

we ensure our customer can easily obtain technical support.

we have a highly qualified technical team to give complete technical solution for our pumps.

mission pump parts include mission magnum i pump parts, mission 2500 supreme pump parts, mission sandmaster pump parts, mission xp pump parts size 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14, 12x10x23, 14x12x22 etc.

mission magnum type heavy duty centrifugal sand pump available in various sizes and setups, with hard iron casted left hand housing and impeller, mechanical shaft seal with ceramic shaft sleeve and graphite backup packing.

most common 2500 series pump will be equipped with those options, other configurations are available.

sxp/xl centrifugal pumps main parts

• heavy duty pedestal - heavy duty frames are manufactured from cast iron for high strength and durability to withstand high piping loads.

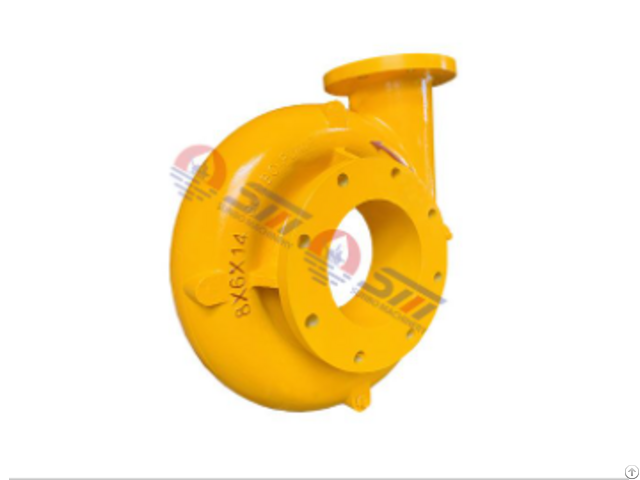

• housing - the mission magnum xp/xl frac pump has been beefed up in critical wear areas for extra life.

the concentric housing eliminates vibration, turbulence, cavitation, and reduces bearing load and shaft deflection.

• impeller (open type) - mission xp/xl pump open vane impeller design is engineered to reduce turbulence, eliminate recirculation, lower radial and thrust loads, and provide a smooth flow of fluid through the pump.

• face plate - the mission xp/xl pump casing comes with replaceable wear plates.

this feature reduces the maintenance costs of housing replacement by merely replacing the wear plates.

• shearing ring- mission xp pump offers a shearing ring option to convert a regular centrifugal pump to a shearing pump for special mud applications.

• mechanical seal - mission xp/xl pump takes pride in carrying one of the finest mechanical seals on the market, whether it be tungsten-tungsten, tungsten-silicone, or silicone-carbide.

they come with a highly polished sealing faced and with piton bellows and stainless steel springs.

• pump bearings - mission xp/xl pump uses nothing but the best and the finest bearings in its pumps.

the outboard bearing assembly consists of a pair of angular contact bearings with high thrust load ratings and zero end play.

the heavy duty inboard bearing is a double row ball bearing with high radial load ratings to compensate for the larger size impellers and heavy duty applications.

• labyrinth seals (optional) - mission xp pump installs labyrinth seals by customer request in all its pumps to isolate the bearings from harmful contaminants while keeping bearings lubricated.
