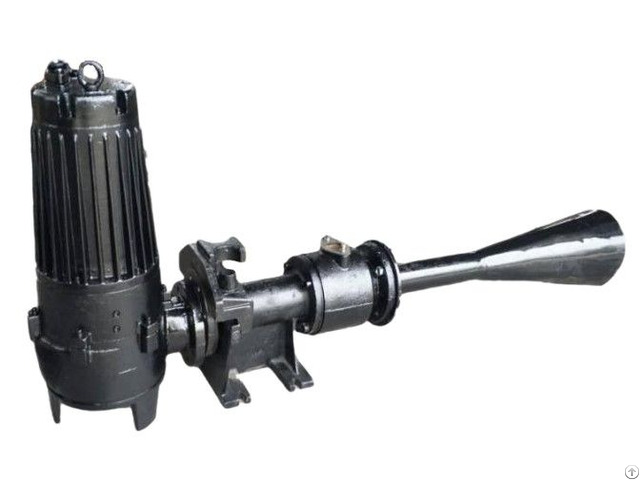

Qsb Type Deepwater Self Priming Submersible Pump Jet Aerator - China

The water flow generated by the submersible pump passes through the nozzle to form a high-speed water flow, creating negative pressure around the nozzle to suck in air, which mixes with the water flow through the mixing chamber, A mixed flow of water and gas is generated inside the trumpet shaped diffuser, which is ejected at high speed and carries many bubbles, causing the water flow to vortex over a large area and depth of water Stirring, completing aeration, and its shaft power does not change with the depth of submergence, and the air intake can be adjusted.

That's why jet aerators Can be applied in pools with significant changes in water level.

The aerator consists of a submersible electric pump and a jet pump, which enables simultaneous agitation and oxygenation of the water body.

It can achieve a high oxygen absorption rate and has the advantage of not-clogged impeller.

Strong unidirectional fluid flow creates effective convective circulation, and the motor loading varies small with changes in water level, easy to install.

QSB type deepwater self-priming submersible jet aerator can operate continuously under the following conditions:

1 - The temperature of the medium should not exceed 40 ° C; 2 - The pH value of the medium should be between 5 to 9; 3 - Medium density not exceeding 1150kg/m3
