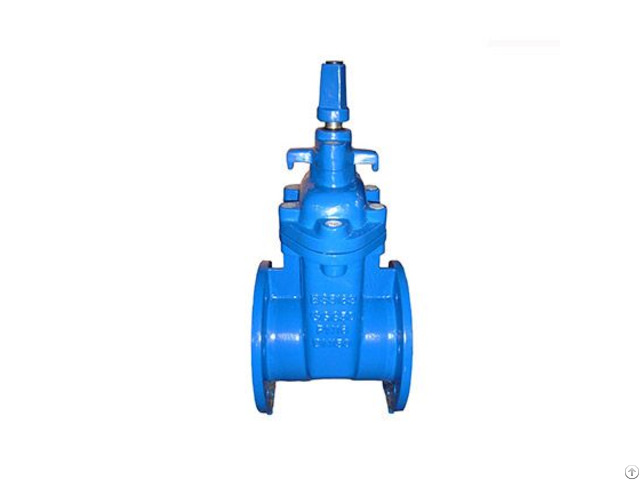

Resilient Seat Gate Valve Bss - China

Resilient seat gate valve-bs

valve size: dn40 – dn1200

pressure rating: pn6, pn10, pn16, pn25

material: cast iron(gg25) and ductile iron(ggg40 and ggg50).

design & manufacture: bs5163 type a, bs5163 type b

face to face dimension: en558-1 bs5163

ends dimension: bs4504 en1092

test & inspection: bs6755 en12266

drive device: handwheel, cap, bevel gear; electrical & pneumatic actuator

features:

leflow’s bs resilient seat gate valve has following options:

1 - several models both bs5163 a and bs5163 b are manufacturing, meanwhile, leflow also designs 3 types of bs5163 a gate valve—light, middle and heavy type to meet customers’ different requirement, their shape, weight and pressure rating are not same;

2 - both rising and non-rising stem are available;

3 - pn25 rating is available for size under dn300, dn600-dn1200 are our common product, and leakage rate can be grade a; by-pass is optional for big size valves;

4 - stem nut can be ductile iron, brass, bronze and other grade of brass alloy;

5 - extension stem, fixed or telescopic type, is available;

6 - surface box is optional;

7 - position indicator is available;

resilient seat gate valve, known as soft seat gate valve, is a commonly used pipeline valve, which adopts soft materials as sealing elements to achieve the control of valve opening and closing.
