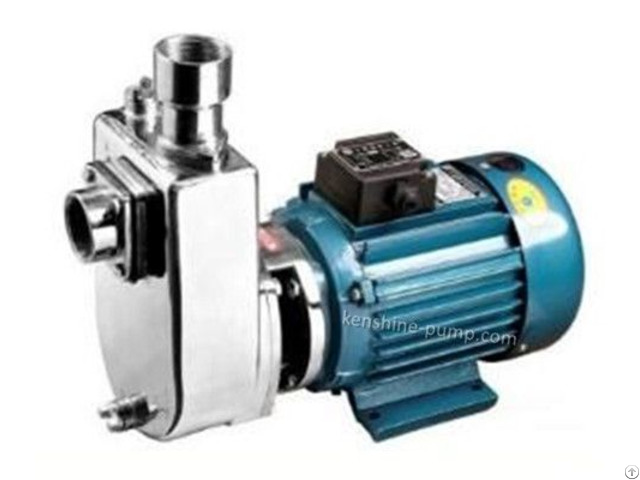

Sfbx Small Self Priming Stainless Steel Centrifugal Pump - China

SFBX Small stainless steel self priming corrosive resistance centrifugal pump:

SFBX Series small stainless steel self priming centrifugal pump is developed as the anti corrosion stainless steel self priming pump.

Impeller can be close impeller or semi-open impeller type.

Connection type between pump and motor can be direct connection or the connection with bearing bracket.

SFBX Series small stainless steel self priming centrifugal pump is made of stainless steel material (SUS304, SUS316, SUS316L)etc.

The pump is widely used to transfer corrosive fluids with small soft particles or fiber.

The pumped liquids temperature is not higher than 90 Degree Celsius for direct connection type pump and is not higher than 105 degree Celsius for the connection pump with bearing bracket.

SFBX small stainless steel anticorrosion self priming centrifugal pump has the advantages such as compact structure and convenient maintenance and low energy consumption and strong corrosion resistance and good seals.

Application:

SFBX pump is widely used in the industries of petroleum, chemical, metallurgy, synthetic fiber pharmaceutical, foodstuff and brewing, etc.

Performance range:

Pump material: SUS304, SUS316, SUS316L

Flow rate: 3-40m

Head: 8-32m

Motor: 380/415V 3phase; 220/240V 1phase; 50hz/60hz Specification sheet:

Model Flow Head Caliber Effic.

Motor power Voltage (m³/h) (m) (mm) (%) (kw) V

25SFBX-8 3 8 25 40 0.25 380

25SFBX-8D 3 8 25 40 0.25 220

25SFBX-13 6 13 25 40 0.55 380

25SFBX-13D 6 13 25 40 0.55 220

25SFBX-13A 6 13 25 40 0.75 380

25SFBX-13DA 6 13 25 40 0.75 220

40SFBX-18 10 18 40 49 1.5 380

40SFBX-18D 10 18 40 49 1.5 220

50SFBX-22 16.5 22 50 50 3 380

50SFBX-28 21 28 50 50 4 380

50SFBX-32 26.5 32 50 50 5.5 380

65SFBX-18 30 18 65 50 5.5 380

65SFBX-22 30 22 65 50 7.5 380

80SFBX-22 40 22 80 50 7.5 380

80SFBX-30 30 30 80 50 7.5 380
